Power transmission belts that are flat and composed of leather, synthetic composites, or rubber are known as flat belts.
They are employed in conveyor systems and industrial machinery to transfer rotational power. Flat belts are suitable for high-speed operating applications because of their low profile and positive grip.
The trapezoidal profile and flat cross-sectional form of flat belts reduce slippage and boost power transmission efficiency.
These belts, made of a combination of rubber and reinforcing fibers, are available in a range of lengths and strengths to accommodate different application requirements.
In this reading, we’ll explore what a flat belt is, its applications, diagram, types, material, construction and how it works. We’ll also explore its common terminology, its advantages and its disadvantages.
Let’s begin!

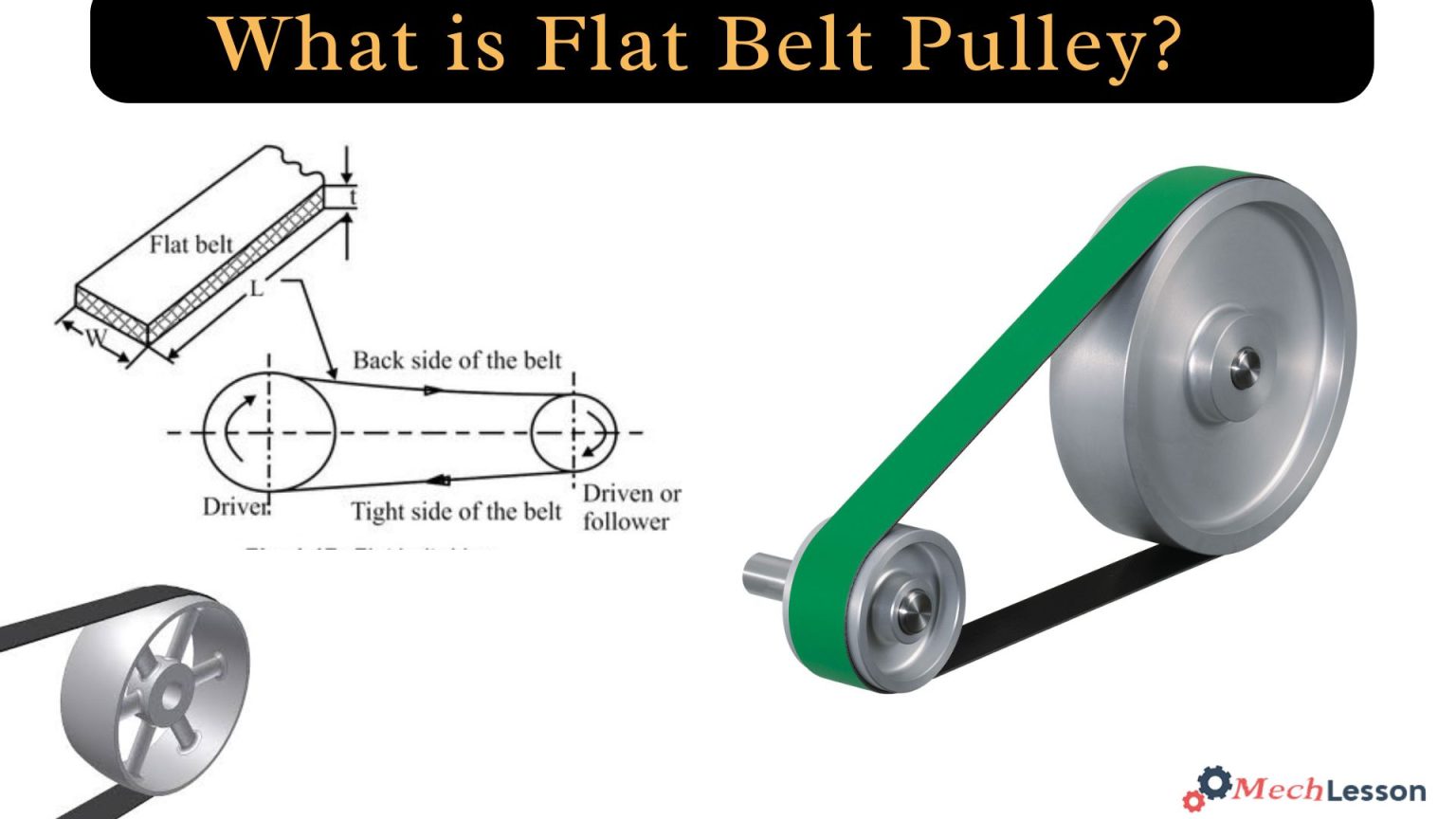

What is Flat Belt Pulley
Flat belt pulleys are used in gearbox systems powered by flat belts, which are typically high-speed, low-power applications found in the paper and textile industries and office equipment like computer printers.
The rear side of a traditional V-belt can also be supplied with a flat pulley idler.
The belt immediately rises to the maximum radius at the top of the crown and remains there when the flat belt on such a pulley is off-center and the pulley rotates. To maintain the belt “tracking” properly and stop it from “walking off” the pulley’s edge, the crown is necessary.
Flat belts are made for high-performance conveying and light-duty power transmission. Applications with larger center distances and smaller pulleys are the perfect fit. Flat belts are available in joint and limitless constructions, and they can link to pulleys both inside and outside.
Conveyors are another application for flat belts. Flat belt pulleys can be smaller than V-belt pulleys since flat belts are at least 25% smaller than plied belts with the same horsepower. Additionally, flat belts are less expensive than those found in serpentine belt pulleys.
One safety feature is that the belt may slide under excessive torque, protecting other pieces of equipment from harm. Flat pulleys and flat pulley idlers are necessary for flat belts.
Flat belt pulleys with grooves are not always necessary for them. Motive force is applied to the belt using flat belt drive pulleys.
Applications
Applications of a flat belt pulley in various industries include:
- Flat belts, or drive systems, are used in industrial and mechanical environments to transfer power between pulleys.
- They are typically made from flexible rubber or synthetic materials with a flat and smooth surface.
- Power transmission with flat belts can vary and typically involves a system with two pulleys—a drive pulley and a driven pulley—connected by the belt.
- Flat belts can be customized for specific applications, such as being equipped with tracking sleeves or having their friction coefficients adjusted to minimize slippage.
- Conveyor systems move items like boxes, packages, and raw materials.
- Flat belts are used in printing presses to convey power from the motor to the printing cylinders.
- Machine tools like lathes transmit power from the motor to the cutting tools.
- Flat belts can be used in power transmission systems to convey power from a motor to various machines.
- Flat belts are used in textile machinery to deliver power to spindles, needles, and other parts.
- Flat belts used in the textile industry are leather belts, synthetic belts, and rubber belts.
- Flat belts are used in agricultural equipment to transfer power from the engine to implements such as plows and harrows.
- They are common materials used in agricultural equipment, such as rubber, leather, and synthetic options.
- Flat belts are used to transmit power from the motor to the cutting blades and other essential components.
- Flat belts used in woodworking machinery are rubber, leather, and synthetic options.
Diagram
Types of Flat Belt Pulley
The major parts of flat belt pulleys in various industries include:
- Fast and loose pulley
- Paper Pulley
- Wooden pulley
- Steel pulley
- Cast Iron Pulleys
1. Fast and loose pulley
The machine can be switched on or off thanks to fast and loose pulleys on the shaft. A free pulley runs on its own, whereas a fast pulley is fixed to the machine shaft.
When the machine is not needed to transmit power, the belt switches to a loose pulley. The belt is initially driven by a fast pulley. This prevents other machines that share a line shaft from being impacted when one machine is stopped.
To stop axial movement, a cast iron or gun-metal bushing with a collar at one end is connected to the loose pulley. To make the belt move more slowly on the loose pulley, the fast pulley’s rim is made bigger than the loose pulley’s.
The loose pulley has to be well lubricated and often has a longer hub to minimize wear and friction.
2. Paper Pulley
When the distance between the center and the center shaft is small, paper pulleys—which are composed of compressed paper fibres with metal in the center—are frequently used for belt gearboxes from electric motors.
3. Wooden pulley
When compared to cast iron or steel pulleys, wood pulleys are lighter and have a higher coefficient of friction; they weigh two-thirds as much as a similarly sized cast iron pulley and are typically made of selected maples that are glued together under intense pressure.
Protective shell or varnish coatings prevent them from absorbing moisture, preventing war.
Wood pulleys can be solid or split with an iron hub that is fastened with screws, or they can have movable bushes that reduce the frictional resistance between them and the shaft.
These pulleys are used in motor drives where the contact arc between the pulley face and the belt is limited.
4. Steel pulley
Steel sheets are used to make steel pulleys, which are incredibly strong and resilient. Compared to iron pulleys of the same capacity, these pulleys are made to run at higher speeds and weigh between 40 and 60 percent less.
They exhibit a coefficient of friction with a leather belt that is at least as high as that which a cast-iron pulley can generate.
Typically, two pieces of steel pulp are joined together. Especially in most cases, it is a key necessity because the clamping action of the hub retains its shaft pulley. In order for steel pulleys to be used, they generally come with interchangeable bushes with shafts of different lengths.
5. Cast Iron Pulleys
Cast iron is usually used to make pulleys. The main boss, arms, or spokes are used to position the rim on the web. The cross-section is usually elliptical, and the arms can be either straight or curved. Typically, cast iron pulleys have circular rims.
The arms of a cast pulley are under stress and are prone to breaking when it shrinks into the casting. Instead of breaking, curved arms give. Near the hub are weapons. We call this little convexity a crown.
When moving, the belt is centred on a pulley rim by the crown. The length of the crown can range from 9 mm to 300 mm.
There are two types of cast iron pulleys: split and solid. Split pulleys are simple to use when mounting a pulley on a shaft that already has pulleys, etc., or when the ends of the shaft are swollen.
The faces are spaced apart, and a bolt may be used to simply tighten the two pieces on the shaft. Heavy drives are used with a buried key.
How Does a Flat Belt Pulley Work?
Flat belts are a type of drive system that utilizes frictional contact between the belt and the pulley to transfer rotational power. They are known for their quiet operation and minimal vibrations, with the upper part of the belt under tension during rotation.
The amount of power transmitted is influenced by the friction between the belt and the pulley, and to minimize slippage, the belt should be operated at lower speeds.
Crown or camber is a process where a flat belt is warped with a bow shape, with the camber being the outward edge and the concave middle referred to as the bow.
Flat belts are typically composed of a blend of rubber and reinforcing fibers, with natural rubber offering excellent elasticity and durability, while synthetic rubbers offer better resistance to heat, oil, and ozone.
Reinforcing fibers, such as polyester fibers, Kevlar fibers, and fiberglass fibers, enhance the tensile strength and stability of flat belts. Fillers, antioxidants, and antiozonants are also used to enhance performance and prolong the service life of the belts.
In summary, flat belts are a quiet and efficient drive system that utilizes frictional contact between the belt and the pulley to transfer rotational power.
Materials
Rubber and reinforcing materials are chosen first, then combined, molded, cured, cut, and joined to create flat belts.
Both natural and synthetic rubbers are often used to make these belts, and they often get cords, fabric covers, and other improvements applied. The ultimate result is a flat belt that is sturdy and reliable.
After being combined and heated, the selected ingredients for flat belts are put under pressure in a mold to cure the rubber. The material choice for the molds used in this procedure is steel, although they can also be made of other metals, such as hardened steel.
Vulcanization is a crucial process in the production of flat rubber belts. By employing sulphur as an activating agent to cross-link the rubber molecules, this technique improves the rubber’s strength, elasticity, and longevity while giving the belt increased tensile strength and resistance to stretching.
The completed belt is removed from the mold once it has cured. Thereafter, the belt is cut to the proper lengths, and its ends are connected to form a continuous loop using pressure and heat.
The performance and lifetime of flat belts can be improved by adding characteristics beyond the fundamental manufacturing processes. For example, surface coatings can be used to increase an object’s resistance to abrasion, heat, and oil.
To improve grip and lessen slippage, notches can also be included.
Construction of a Flat Belt Pulley
- Composed of a blend of rubber and reinforcing fibers.
- Rubber provides flexibility and durability for power transmission.
- Reinforcing fibers enhance the belt’s strength and stability.
- Natural rubber, derived from the sap of the Hevea brasiliensis tree, offers excellent elasticity and durability.
- Synthetic rubbers, derived from petroleum, offer better resistance to heat, oil, and ozone.
- Reinforcing fibers include polyester, Kevlar, and fiberglass.
- Materials like fillers, antioxidants, and antiozonants enhance performance and prolong service life.
Terminology of a Flat Belt Pulley
Belt Length: Measures the distance between two pulleys and the circumference of the pulley. Calculated using the formula: 2π x Pulley Radius + 2 x Arc Length.
- Pulley Diameter: The belt must fit the diameter of the pulley and its grooves.
- Center-to-Center Distance: The distance between the centers of the pulleys is part of the calculation of belt length.
- Operating Tension: The belt’s width must handle the load and provide sufficient grip on the pulley.
- Load to be Transferred: The load to be transferred determines the operating tension and the appropriate belt width.
- Belt Speed: The speed at which the belt runs affects the operating tension.
- Maintenance: The cost of repairs or replacements.
- Noise Level: The noise level generated by the belt and its pulley system.
- Belt Material: The right material for the job, including temperature, humidity, and chemical exposure.
- Compatibility: The belt and pulley materials should be compatible to avoid slippage and failure.
- Cost: The initial cost may be high due to the type of material, but the cost can be amortized over the belt’s lifespan.
Advantages of Flat Belt Pulley
The advantages of a flat belt pulley include:
- High Speed: Ideal for fast, efficient power transfer.
- Efficient Power Transmission: Delivers power with minimal energy loss.
- Durability: Made from resilient materials like leather, rubber, or synthetics.
- Reduced Noise: Operates quietly, contributing to lower noise levels.
- Versatility: Adaptable for various applications, including high-speed machinery, conveyors, and packaging systems.
- Positive Drive: Engineered for reliable power transmission without slippage.
- Easy Installation and Maintenance: Minimizes downtime and maintenance expenses.
- No Stretch: Resists stretching over time, reducing tension adjustments.
- Clean Operation: No debris or lubrication required.
- Cost-Effective: More affordable than other belt types.
- Easy to Customize: Can be tailored to meet specific application requirements.
- High Strength: Ideal for heavy-duty industrial applications.
Disadvantages of Flat Belt Pulley
The limitations of a flat belt pulley include:
- Limited Flexibility: Flat belts are less flexible than round or V-belts, making them unsuitable for adaptable power transmission solutions.
- Complex Design: The design of flat belts is more intricate, complicating installation and maintenance.
- Restricted Speed Range: Flat belts are optimized for high-speed applications and may not perform effectively at lower speeds.
- Vibration Issues: Flat belts can produce vibrations, leading to noise and increased wear.
- Shorter Lifespan: Compared to other belt types, flat belts have a shorter lifespan.
- Lower Power Capacity: Flat belts generally have a lower power capacity, limiting their use in high-power transmission applications.
- Tensioning Needs: Proper tension maintenance is crucial for flat belts, increasing maintenance needs and potential downtime.
- Higher Initial Cost: Flat belts have a higher initial cost, impacting their cost-effectiveness.
- Unsuitable for Curved Paths: Flat belts are designed for straight-line power transmission, making them unsuitable for curved paths.
- Support Requirements: Flat belts need support along their entire length, complicating system design.
FAQs
What is a flat belt pulley?
Flat belt pulleys are utilised in transmission systems powered by flat belts, which are commonly employed in high-speed, low-power applications in the paper and textile industries as well as in office equipment like computer printers and conveyors.
What are the advantages of flat belts?
The following section discusses some of the primary benefits and drawbacks of flat belt drives. Benefits include ease of use, affordability, smooth operation, shock absorption, versatility, and efficiency at high speeds. prevents belt sliding from causing unexpected overloads that might ruin the driving mechanism.
How do I know if my belt or pulley is bad?
The signs of a failing or failed tensioner pulley include belt sliding, wobbling motion or non-rotation, and an odd grinding, growling, or screaming sound.
How do you prevent the flat belt from slipping off the pulley?
If your belt is slipping, try increasing the tension a little bit without overtightening, since it might lead to a completely new conveyor belt problem called “mistracking.” If the tension is too slack, there won’t be enough traction between the belt and the pulley to keep it on track.
Where are flat belts used?
Flat Belt Applications
- Compressors
- Conveyors
- Machine tools
- Industrial equipment.
