A furnace, often known as a heater, is equipment that uses the combustion of a fuel source to produce thermal energy in a controlled manner. This thermal energy is used to heat rooms, buildings, and other structures.
In addition, some are employed to process specific materials in industrial and commercial settings.
It serves as a significant component in central heating systems. Installers use an intermediary fluid, such as air, steam, or hot water, to supply heat to the interior space.
Some regions use electric resistance heating, especially when electricity costs are low or when air cooling is the main objective.
A normal gas furnace is roughly 80% efficient, and modern furnaces can be up to 98 percent efficient and operate without a chimney. Furnaces come in various sizes, and not all are suitable for every use. In this text, we’ll explore various types of furnaces and their uses.
Let’s Get Started!
Related: What is Blast Furnaces? Its Diagram & How it Works
What is a Furnace?
Industrial furnaces are crucial industrial devices that provide direct electric or heat from combustion for processes requiring temperatures exceeding 752°F (400°C).
These devices are essential for successful manufacturing operations, allowing for precise temperature control and dependable performance. There are two primary types of industrial furnaces: electrical and fired.
Electrical furnaces, such as arc furnaces and high-frequency induction furnaces, are used for refining and melting metals, while fired furnaces use combustion from a fuel source to heat raw materials or sinter finished parts.
The design of furnaces differs based on the fuel source and type, with factors such as process temperature, furnace height, outer diameter (OD), length, and pressure range being crucial.

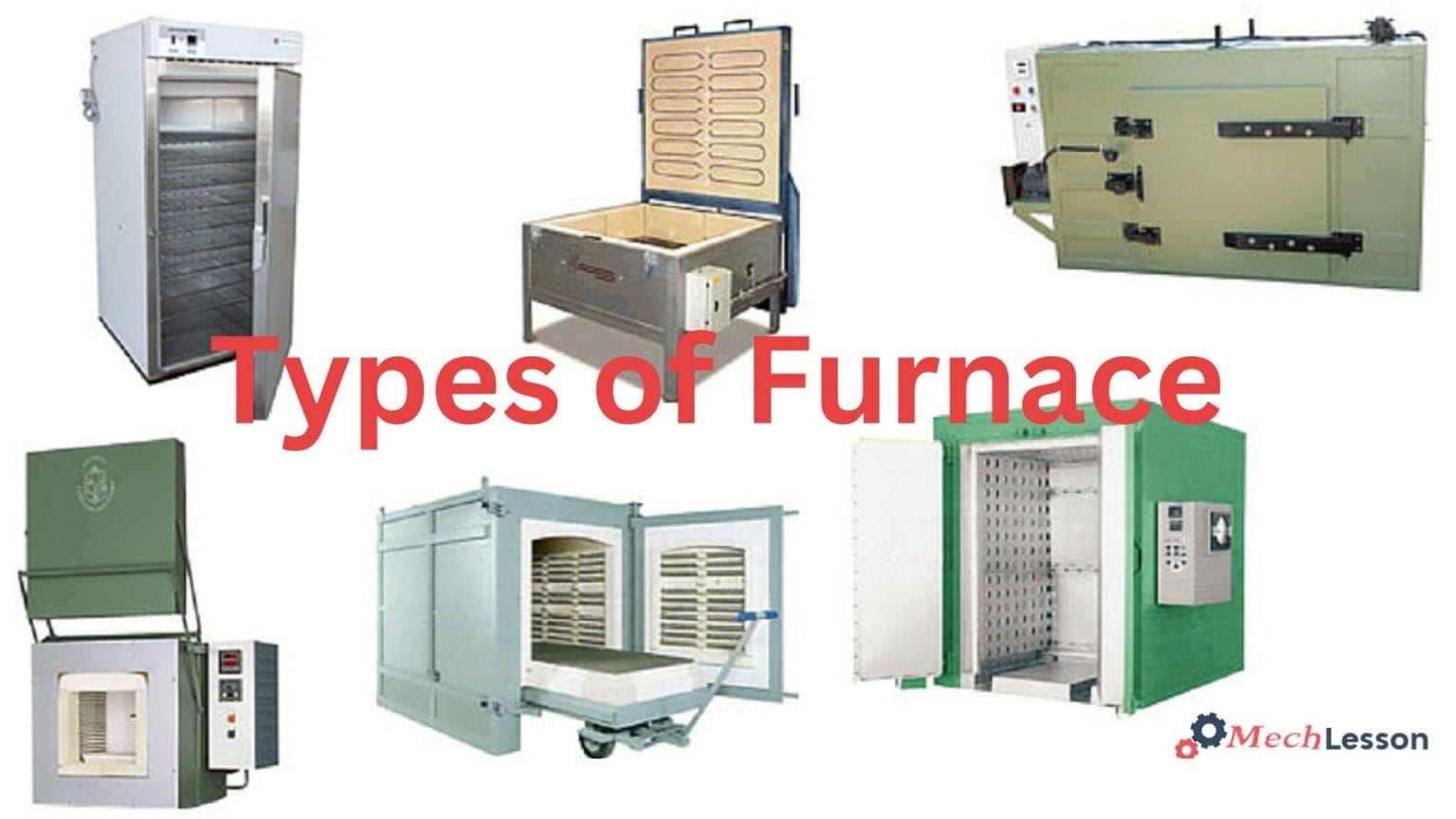

Types of Furnaces
The various types of furnaces are
- Natural gas furnace
- Oil furnace
- Electric furnace
- Propane furnace
- Waste oil furnace
- Wood burning furnace
- Dual Fuel Furnace
- Modulating furnace
- Single-stage furnace
- Two-stage furnace
- Bell furnace
- Box furnace
- Forging furnace
- Pit furnace
- Quenching furnace
- Rotary furnace
- Salt bath furnace
- Tempering furnace
- Cupola Furnace
- Electric Arc Furnace
- Induction Furnace
- Crucible Furnace
- Ashing Furnace
- Calcination Furnace
- Annealing Furnace
- Blast Furnace
Natural Gas Furnace
Natural gas furnaces are the most prevalent and oldest type of furnace. The major source of fuel is a naturally occurring gaseous mixture of carbon (C) and hydrogen (H).
Because these furnaces do not wear out frequently, they are substantially less expensive to maintain. With proper care, it can endure up to 25 years.
Natural gas furnaces in your home save money on energy since they use the cheapest fossil fuels. The cleanest variety reduces pollution. It can also provide a lot of heat when burned, allowing for more efficient home heating.
Related: 6 Different methods of steelmaking
Oil Furnace
An oil furnace, as the name implies, burns oil as a fuel source. The users of these types of furnaces must locate where to keep the oil and must also fill the tank regularly. The furnace will not operate if the tank runs out of oil.
While the furnace is simple to maintain, the accumulation of dirt and soot makes it expensive to run. These furnaces, on the other hand, have a 30-year lifespan and are less expensive than gas furnaces.
Although current oil furnaces must have an AFUE rating of between 80 and 90 percent, they are not ecologically friendly.
Electric Furnace
Because electric furnaces do not require a gas line, they are the most common type of furnace. Electric furnaces are pricier to run than gas or oil furnaces.
Despite this, electric furnaces are more beneficial to both customers and the environment for a variety of reasons. It’s also a more cost-effective and efficient option.
It usually comprises a cabinet that houses a blower motor and a heating coil (heat strips). An electric current travels through the heating coils when the thermostat calls for heat, causing them to become extremely hot.
The engineering, food, chemical, and laboratory industries, among others, utilize them.
Propane Furnace
A propane-type furnace transfers heat to a heat exchanger by transforming liquid propane into a gas. Propane is the most popular variety because it does not require a gas line and can be used practically anywhere.
They’re a terrific option because of their advantages, such as being safer, more cost-effective, and warmer.
It can be set to use natural gas as an alternative in the event of a propane scarcity or a severe price hike. Propane provides more heat than other fuels when burned. As a result, it swiftly heats a home.
Related: What is Pig Iron? Its Applications, Properties & Composition
Waste Oil Furnace
For user convenience, waste oil types of furnaces utilize waste oil and convert it into efficient, free heat. Waste oil, such as discarded vegetable oil or automobile oil, is utilized in these furnaces because it can no longer be used for its original function.
Because it recycles oil for disposal, it is considered a highly environmentally beneficial device. These types reduce the expense and danger of transferring old oil away from your home.
They also conserve space on the floor and might help you achieve a high return on investment.
Wood burning Furnace
Wood-burning furnaces are ideal for households, places where there is a plentiful supply of firewood. A solid metal closed firebox, often lined with firebrick, and one or more air controls are typical components of a furnace (manually or automatically).
In the same way that gas furnaces emit heat, wood-type furnaces burned in a firebox emit heat that flows through the ductwork. However, even if you use wood pellets, these are of limited value because they must be physically fed and cared for regularly.
They’re inconvenient, especially if there’s no one around when the furnace is on.
Dual Fuel Furnace
To improve comfort and economy, a dual-fuel-type furnace combines an electric heat pump with a gas furnace and alternates between the two fuel sources.
Because they can function as heat pumps in the summer and as gas furnaces in the winter, these furnaces are incredibly practical.
These are known to be highly efficient in terms of energy use and cost-effectiveness once you get beyond the initial upgrading and installation costs. One disadvantage is that switching from a single-fuel furnace to a dual-fuel furnace may incur additional costs.
Related: What is Forging, its Applications, Types, and How it Works?
Modulating Furnace
Even though modulating furnaces are more expensive, most people think they are worth it because they provide you more flexibility over your temperature settings and help you save energy.
It controls the gas burn to maintain the thermostat’s temperature.
As a result, it can more accurately indicate temperature. These types of furnaces likewise have lower energy requirements, yet they still provide adequate heat. In comparison to single-stage and two-stage furnaces, the modulating furnace is less efficient.
Even so, it’s a wonderful option for homes in places where winters are longer.
Single-Stage Furnace
A single-stage furnace, as the name implies, simply has an “on” setting. This type of furnace provides for a higher rate of gas flow and is meant to run at a steady speed. It is usually noisy. It does not provide much heating, which affects monthly cost reductions.
These are ideal for lighter locations because they work at an annual fuel efficiency of 80%, which is sufficient to keep your home warm.
However, because there is less technology involved in the process, it is less expensive to implement. Because the furnaces are so long-lasting, just minor maintenance is required.
Two-Stage Furnace
The two stages simply suggest that there are two levels of heat production: high for chilly days and low for mild days. Because it allows you more control over the flow of gas, a two-stage furnace offers more options than a single-stage one.
It can adjust the power to the heating load’s demand and run at a 90 percent yearly fuel efficiency. The thermostat will send a signal when it cools down, which will automatically open the valve and start the furnace at full power.
These types of furnaces have a prolonged heat cycle, which means hot air is distributed throughout your home to make it more comfortable.
Related: What is Die Casting? its Diagram & How it Works
Bell Furnace
We often use this industrial-style furnace for batch or intermittent procedures. We use this furnace type not only for heat treatment but also for low-temperature sintering procedures.
During vacuum or controlled atmosphere processes, the hood of this furnace can be raised and lowered repeatedly.
This type of furnace performs the tempering, annealing, normalizing, and stress relieving of parts made of steel plates. This tool can be used with various bases while still providing a secure seal.
Bell furnaces have the advantage of being a safe and cost-effective heat treatment technology.
Box Furnace
A box furnace’s vertical lift or swing-out door allows for the placement of different-sized goods. They are utilized in high-temperature thermal processes such as heat treatment, calcining, curing, annealing, stress relief, preheating, tempering, and others.
You can use either gas or electricity as a fuel source for the box furnace. Box furnaces are used in laboratory and industrial settings to treat large quantities of material consistently.
It comes in tight-seal designs that provide excellent pressure management, allowing you to get the most out of your burners.
Forging Furnace
Open-hearth furnaces, commonly used for preheating, function similarly to a pizza oven. They employ radiation to transfer heat to metals, enabling forging or halting hardening processes.
In heavy-duty forging furnaces, blooms, steel ingots, and other items are typically reheated. You can also purchase them in a forging box. The load charge and discharge may be easily adjusted in certain of these furnaces.
Related: What is Powder Metallurgy? its Processes and Types
Pit Furnace
The primary purpose of a pit furnace is to harden and evenly heat metals like steel. Metallurgical procedures also employ pit furnaces when they require low temperatures.
One of their distinguishing advantages is the ability to produce various temperatures inside a safe and controlled work environment.
These furnaces are available in various sizes and can operate on either gas or electricity. Common applications for these furnaces include the fabrication of automobile and aerospace parts, machine manufacturing, wind power, and mining.
Quenching Furnace
The enclosed heating chamber effectively prevents low-temperature processes such as phase transitions. This furnace primarily aims to prevent uneven heating and overheating, but it also employs tempering techniques to increase hardness after quenching.
These types of furnaces provide stiff materials with rapid, controlled cooling. These furnaces are commonly used to process bearings, gears, fasteners, and agricultural machinery components. Electric and gas-powered versions are also available.
Rotary Furnace
Rotary furnaces are batch furnaces with oxy-fuel burners that produce a limited quantity of off-gases. Usually, during the heating process, a barrel-rotating drive with a steel-welded barrel lining houses these units.
These types of furnaces provide heat homogeneity and good material contact since they are incredibly heat efficient and easy to press.
They are available as gas or electricity, with the compressed combustion gases flowing in the opposite direction. We extensively use these in calcination and oxidation processes.
Related: What is Extrusion? it Diagram and How it Works
Salt Bath Furnace
A salt bath furnace is a ceramic or metal container filled with molten salt in which work is heated or cooled. To obtain speedy results in metals, they use incredibly rapid heating. Typically, these are electric, although they can also be gas-powered or heated outside using an electric unit.
They’re utilized for surface treatment that doesn’t involve carburization or salt nitriding, simple surface cleaning, or temperature changes that aren’t extreme. When necessary, the furnace may reach 2,350 degrees Fahrenheit.
Tempering Furnace
It’s a sort of industrial oven used to harden ferrous metal products by heating them. Heat treatment of high-strength materials can alter the alloy’s formation and energy absorption.
To achieve a balance of flexibility and strength, tempering furnaces are used in conjunction with quenching furnaces. To accomplish the appropriate physical qualities, these furnaces maintain a constant temperature throughout the chamber.
These types of furnaces can be used for both gas and electric heating and can provide indirect fuel contact.
Cupola Furnace
A cupola furnace is a foundry furnace used for melting and casting iron. It is a cylindrical shell with a diameter of 5-13 feet and is 30 to 80 feet tall. The furnace is filled with iron ore, coke, and limestone, which are heated and melted.
Molds collect and tap the molten iron. Although efficient, the cupola furnace also contributes to air pollution due to the combustion of coke, resulting in large amounts of pollutants.
Electric Arc Furnace
An electric arc furnace (EAF) is a type of foundry furnace used for the melting and refining of scrap steel through the use of electric arcs created by graphite electrodes.
The furnace, generally constructed from a steel shell, melts scrap steel, which then undergoes refining with materials such as lime or fluorspar.
The Electric Arc Furnace (EAF) is environmentally friendly, minimizing waste and the demand for new raw materials, thereby serving as an effective method for processing scrap steel.
Related: What is Sand Casting? Its Diagram & How it Works
Induction Furnace
Induction furnaces, among other foundry furnaces, serve as crucial equipment for the melting of metals. These furnaces use electromagnetic induction to generate electrical currents within the metal, thereby producing a magnetic field.
This process produces heat and causes the melting of various metals, such as iron, steel, copper, and aluminum.
Induction furnaces offer quicker heating, enhanced energy efficiency, improved temperature regulation, and reduced emissions, positioning them as an environmentally friendly option.
Crucible Furnace
Foundries use crucible furnaces to melt and cast metals with low melting points. A fuel source heats a furnace chamber, causing the metal inside to melt. The molten material is subsequently cast into molds to form specific shapes.
Furnaces come in a range of sizes, including small tabletop designs for jewelry production and larger industrial units designed for foundries and manufacturing plants.
Ashing Furnace
Ashing furnaces measure weight change of samples by burning components, eliminating organic material. These furnaces, designed for analyzing complex samples, include a heating element and scale.
They measure weight before, during, and after combustion. Ashing furnaces are used in food and petroleum industries to determine mineral content and assess product combustibility.
Calcination Furnace
Calcination is a thermal treatment process that heats ore samples to temperatures below their melting point to facilitate thermal decomposition or the removal of volatile components.
This process is crucial for the extraction of metals from ores, especially carbonates or sulfates.
Related: What is Annealing, its Purposes, Stages and How it Work
Annealing Furnace
Annealing furnaces improve the physical qualities of metals by heating them to a specific temperature, which helps relieve internal stresses and makes them more flexible for later machining, while also stopping internal stress from building up after the heating process.
Blast Furnace
The blast furnace is a large, vertical furnace used in the production of iron and steel. It melts iron ore and other materials, such as limestone and coke, in the presence of hot air. Pig iron, a raw material in steel production, is the result of this process.
The blast furnace is a cost-effective method for producing large quantities of iron and steel, but it also contributes to greenhouse gas emissions due to the heating process.
How Do Furnaces Work?
Furnaces have evolved, using various types of fuel to maintain consistent heat and reduce environmental pollution. Modern furnaces, powered by electricity, have automated fuel feed systems and can accommodate various fuels.
The choice of fuel influences the furnace’s design, but an adequate oxygen supply is crucial for efficient operation.
Electric furnaces are efficient and environmentally friendly but are costly to operate. They can be categorized into two types: induction and resistance heating.
Furnace burners are essential components for generating heat from fuel, mixing it with air, and igniting it to ensure optimal flame quality. Burners can produce six different types of flames: A, C, E, F, G, and H.
Type A is a conventional flame used in all-purpose furnaces, while Type C is ball-shaped with swirls and hot reverse flows in cubicle-shaped furnaces. Type E has a high swirl with some recirculation to avoid flame impingement and focus on hot spots.
Type F is long and luminous, used in long furnaces due to its luminous radiation. Type G is long and luminous without swirl, providing uniform coverage for long furnaces.
The stack, a vertical pipe or chimney, vents hot air or flue gases from the furnace, regulated to prevent harmful gases from being released into the environment. Flue gases, including CO₂, water vapor, nitrogen, and oxygen, are removed using filtration systems.
High pressure outside the stack helps expel the gases. Some stack configurations have damper blades to control airflow, ensuring the stack’s safety and preventing unwanted materials from entering.
Most central heating systems use furnaces as a key component. We install them to supply heat to the interior space using an intermediary fluid like air, steam, or hot water. We have previously explained the common types of furnaces.
