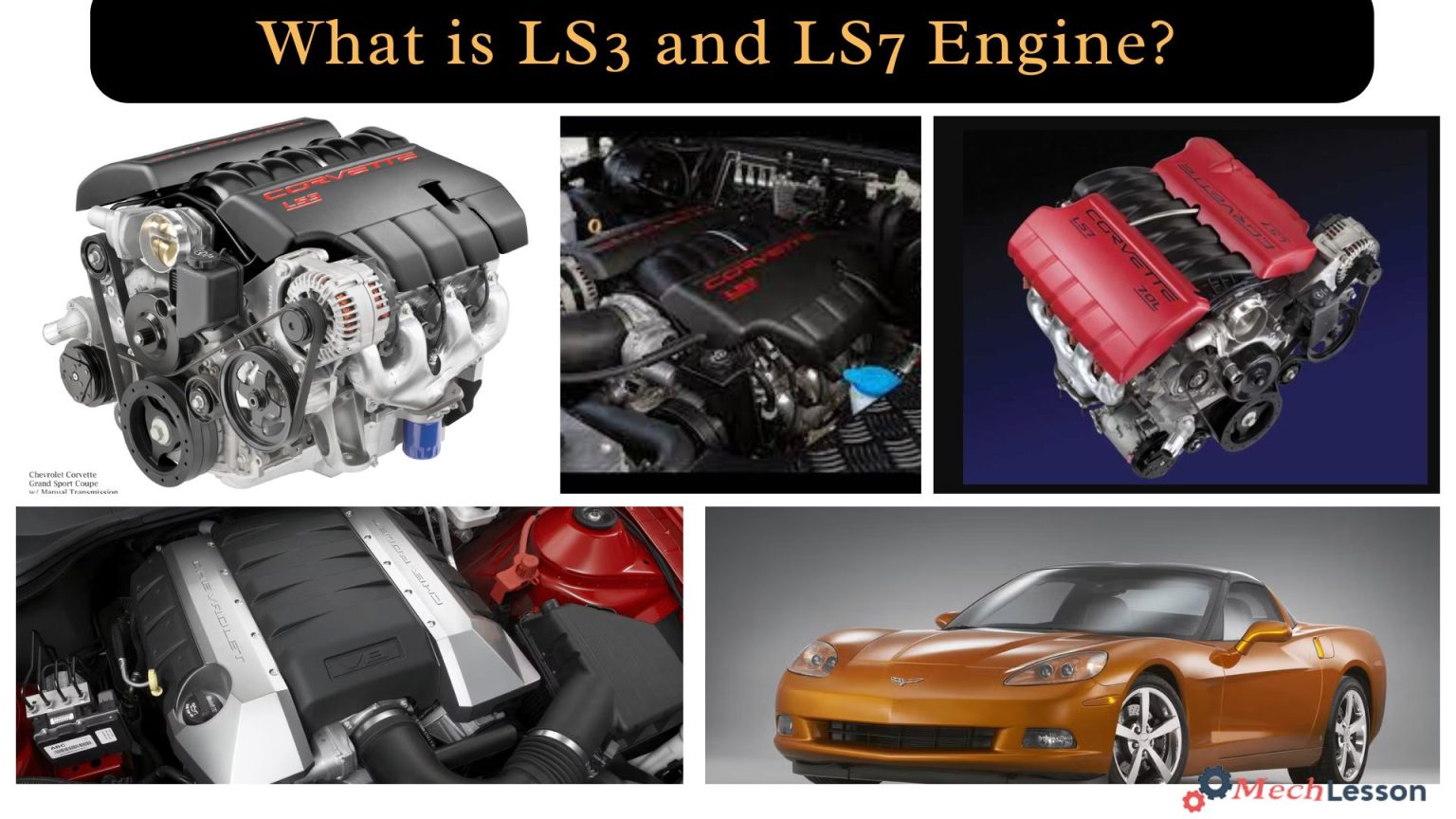

What is LS3 and LS7 Engine, Their Differences and Benefits?

If you need a small block for a Chevy or GM car, you might be curious about the distinctions between the LS3 engine and the LS7 engine. Both of them are GM tiny blocks from the fourth generation, but they also differ significantly in some important ways.

General Motors’ 6.2L V8 LS3 engine, which debuted in 2008, is known for its excellent performance and adaptability. With improvements including a bigger displacement, new cylinder heads, and a modified intake manifold, this third-generation engine builds upon the LS2.

The 7.0-liter LS7 is an engine produced by General Motors for high-performance vehicles. The company released the new LS7-based LS427/570 crate motor with an increased output of 570 horsepower and 540 pound-feet of torque, which is a bump of 65 horsepower and 70 pounds of twist.

Well, in this reading, we’ll have a good look at what the LS3 Engine and the LS7 Engine are, their differences, as well as pros and cons. We’ll also explore the best between the two and their FAQs.

Let’s begin!

Learn about Automobile Engine with this detailed guide!

What is a LS3 Engine?

A fourth-generation small-block GM engine is the LS3 motor. It was originally made and installed in Corvettes in 2008. Because of how well it runs, it’s currently one of the most widely used remanufactured engine alternatives for Chevy supercars.

The LS3 is a popular option for performance enhancements, and it provides a strong and dependable power supply for a range of vehicles, including Corvettes and Camaros.

430 horsepower and 424 lb-ft of torque are produced by the LS3. Versatility: With an enormous number of modification choices, it’s a well-liked alternative for engine swaps and performance enhancements.

The 6.2-liter LS3 has a sequential fuel injection system and a large displacement. It had 430 horsepower and 424 lb-ft of torque when it initially appeared. You may now find some with 436 horsepower thanks to modifications. High-flow cylinder heads are used in this V8 engine to ensure sufficient airflow.

Additionally, a high-flow intake manifold was included in the design to go with those cylinder heads. All timing is maintained precisely by the 58X ignition unit. Additionally, the motor is constructed with a crankshaft ring and sensor, ensuring that the crankshaft position reading is always precise.

Car users that prioritize performance may trust the LS3 because of its reputation for dependability and longevity. Because LS3 crate engines are widely available, they may be easily integrated into a variety of vehicles.

Features such as a nodular iron crankshaft, aluminum pistons, powdered metal rods, L92-type rectangular-port heads, and a high-lift, hydraulic roller camshaft are all included in the LS3. Because of its high-rpm architecture, the LS3 is appropriate for performance applications. Excellent airflow is made possible by the LS3’s architecture, which enhances performance.

You should learn about Turbocharger with this detailed guide!

What is a LS7 Engine?

The LS7 engine is renowned for its performance. It’s a 2006-era GM engine that came out before the LS3. It has a light block but is more durable due to its construction of cast steel and aluminum. The engine has been producing 505 horsepower and 474 lb-ft of torque since its debut.

The naturally aspirated LS7 engine, developed nearly 20 years ago, produced 505 horsepower and 470 pound-feet of torque, making it more powerful than the current C8 Z06. It was based on the LS1.R engine from the C5.R race car and was used in the C6.R race car, which was highly successful and won the Global Motorsport Engine of the Year for 2006.

The LS7’s impressive performance is due to its unique design, including titanium intake valves, sodium-filled exhaust valve stems, CNC-machined ports, and a dry-sump oiling system with an 8-quart reservoir.

The LS7 was built differently, using titanium intake valves and connecting rods to reduce weight, sodium-filled exhaust valve stems to dissipate heat, and a dry-sump oiling system with an 8-quart reservoir.

It could be modified to make big power numbers, with the stock block claiming 700 to 800 horsepower. The LS7 marked the end of an era, marking the end of the legendary 427 engines and the last of the GM Gen IV small blocks.

The cylinder heads from racing deliver the most airflow. Along with 70cc combustion chambers, it also has computer-controlled exhaust and intake outlets. The naturally aspirated engine produces excellent power since all airflow constraints have been removed.

This engine has a cylinder head-to-high-flow intake manifold coupling. The intake manifold has also received an acoustic shell and foam additions to reduce noise. The dry-sump system’s optimal oil consumption enables perfect lubrication even in situations with higher RPMs.

The LS7 was hand-built in the General Motors Performance Build Center in Wixom, Michigan, and introduced the build-your-own-engine program. The build center has since closed, and special engine building has moved to Bowling Green, where you can now build your own C8 Z06 engine, offering a unique and exciting option for automakers.

You should also learn about Supercharger with this detailed guide!

What are the Differences Between the LS3 and LS7 Engines?

The two engines have different levels of performance, with the LS7 offering greater horsepower, and this is one of the biggest differences between the LS3 and LS7. In addition, the LS7 appears to be more dependable than the LS3, but it is more expensive.

Although they are distinct, both engines have encountered problems. Below are the most prominent differences between the LS3 Engine and the LS7 Engine:

1. Production Years

The LS3 and LS7 engines are both a part of General Motors’ 4th generation of engines. Even though they both come from the same generation, the motors were available in different years.

The oldest of the two models is the LS7. It was created between 2006 and 2015. The LS3 was produced between 2008 and 2017. Both of these engines are available for purchase as reconditioned options.

2. Size/Displacement

The displacement of the LS3 engine is 6162cc, or 376.0 cubic inches. The Chevy Corvette, Camaro SS, and G8 GXP are all compatible with it. LS7 engines have a displacement of 427.6 cubic inches or 7008 cc.

The Corvette Z06 and Camaro Z28 are intended to fit it. Cylinder bore sizes for the LS3 and LS7 are 103.25 and 104.8 mm, respectively. Additionally, the LS7’s piston stroke is 101.6 mm, while the LS3’s is 92 mm.

Even while the bigger piston stroke size could lead to some problems, including more friction and more crankshaft stress, it can survive longer in the long run.

3. Power and Torque Production

While the LS7 is rated at 505 horsepower at 6300 RPM, the LS3 motor will produce between 426 and 436 horsepower at 5900 RPM. Due to this, LS7 engines are frequently chosen by builders seeking racing engines.

The LS7 also has more torque, with 470 lb-ft at 4800 RPM, compared to the LS3’s 420–428 lb-ft at 4600 RPM. You are certain to receive a high-performance option with either engine.

You should learn about Transponder Key with this detailed guide!

4. Compression Ratio

10.7:1 is the compression ratio for the LS3. The LS7 motor, in contrast, offers a compression ratio of 11.0:1. The higher compression ratio is what you want if you want an engine that uses little fuel. More energy is produced during combustion with a higher rating, resulting in a higher temperature with less fuel.

5. Built Material

The cylinder heads and blocks of both engines are made of cast aluminum. The block will remain light thanks to this substance. Its lack of comparable durability to the cast iron engine is a drawback. The cast aluminum, however, also enables greater thermal conductivity. Engine cooling occurs more quickly while maintaining efficiency.

6. Fuel System

Sequential fuel injection systems are offered by the LS3 and LS7 motors. Through injectors that light on their own, the gasoline is delivered to the engine. It continues to be more effective because these systems don’t have several ports.

Premium fuel with an octane rating of 91 or higher is required for LS7 engines. Although the LS3 engine also benefits from this, you are not required to use premium fuel. Additionally, you have the choice of using the ordinary or mid-grade option.

7. Dependability

Due to its high degree of performance, the LS7 engine has a tiny advantage. It is not, however, impervious to problems. In fact, cavitation in the oil system has been reported. The exhaust valves coming apart from the stem have also been a problem.

Fortunately, upgrading the engine is not difficult to do in order to fix these issues. The LS3, on the other hand, seems to have more problems. The most common complaints seem to be regarding defective rings. If it isn’t fixed, you could have to cope with using extra oil.

The LS3 engine also tends to deteriorate more quickly as mileage increases. As opposed to the LS7, you can experience valve and lifter problems sooner. It is also more challenging to maintain due to its smaller, more compact nature. It is challenging to get to the lifters and replace parts.

You should also learn about The Various Types of Car and Their Body Style with this detailed guide!

7. Price

You may pay up to $6,500 for a 6.2-liter LS3 GM engine. The LS7, on the other hand, is nearly twice as expensive. Easily, you could spend over $12,000 on this. These prices are obviously just estimations.

Depending on where you buy the engine and what kind of car you’re going to install it in, the cost varies. You’ll probably spend less money if you buy your own engine instead of going through a local auto repair business.

LS3 vs LS7 Engine in tabular form:

You should also learn about Lean Burn and Rich Burn Engine with this detailed guide!

Pros and Cons of LS3 and LS7 Engines

LS3 Engine

Pros:

There are several benefits to LS engines, which you will see with the LS3. Its output of 430 horsepower without any boosting is a notable benefit. Because of its relative toughness, it became popular in muscle and power cars. The aluminum construction of the LS3 is another benefit.

Because aluminum is both robust and light, it imparts these qualities to the LS3 V8. The LS3’s durability is further increased by the fact that other sections are made of robust steel. The bore of this General Motors vehicle component is broad. It translates to 6.2 liters of displacement.

A benefit of the wider bore is a quick response to throttle inputs and a high rate of revs. Due to its diminutive size and ability to fit into most cars, the LS3 is adaptable.

Cons:

Piston ring defects are a frequent issue with LS engine types. Faulty piston rings can cause significant oil consumption or engine blow-by if ignored. When you modify the engine, the piston issue typically arises.  The LS3 engines’ small size might make maintenance difficult. For instance, you must remove the entire engine in order to replace the lifters.

LS7 Engine

Pros:

The LS7 engine’s strong performance of 505 horsepower is a notable advantage. It is suitable for power vehicles, such as those in the sporting world, because of its power output. Due to the engine’s aluminum structure, it is both lightweight and strong.

Because it is so strong, you do not need to bother about replacing it. Because its parts are accessible, upkeep, and especially repairs, don’t cause tension. For precise ignition timing, the 58X ignition system is essential. As a result, performance is improved and fuel efficiency is good.

Cons:

On the majority of LS engines, the oil system will have problems because of cavitation problems. The good news is that you can swap out your existing oil system for a more suitable one to examine the cavitation issue that prevents oil supply. The cost of installing an LS3 engine can be high, especially when purchasing a matching gearbox system.

On the plus side, you should know that the LS3 and LS7 have many aftermarket parts available. It’s simpler and less expensive to purchase the parts.

You should learn about Engine Sputtering with this detailed guide!

Which is better? LS3 Engine or LS7 Engine?

The LS3 will likely offer everything you need if you require a low-priced, high-performance engine for your construction. You won’t be under any circumstances dissatisfied with the level of performance thanks to the 430 horsepower.

However, I strongly advise the LS7 engine if you have more money and want more. The engine is simple to modify to produce roughly 570 horsepower, making it more powerful than the LS3. However, if you want to install this GM engine in your vehicle, you will need to set aside much more money.

Conclusion

Both the LS3 and LS7 engines represent the pinnacle of Chevrolet’s legendary LS engine family, each offering distinct advantages depending on your performance goals. The LS3, with its affordability, reliability, and solid horsepower, is ideal for street builds, daily drivers, and budget-conscious enthusiasts who still crave V8 performance.

On the other hand, the LS7 stands out with its racing pedigree, larger displacement, and track-ready features—making it the go-to choice for high-performance applications and serious power seekers.

Ultimately, the choice between LS3 and LS7 comes down to your needs:
LS3 for a balance of power and practicality,
LS7 for raw performance and racing-level engineering.

Whichever you choose, you’re guaranteed to enjoy the unmistakable sound and thrill of an American small-block V8.

FAQs

Which engine is better LS3 or LS7?

The LS3 and LS7 small-block V-8 engines are also typically tough and keep their strength over time, thanks to the effective engine cooling. But a side-by-side comparison shows that the LS7 has a little edge over the LS3 due to its greater performance capabilities.

Which LS is the strongest?

The forthcoming 2023 Cadillac Escalade V’s 6.2-liter engine, with 682 horsepower and 653 lb-ft of torque, is the most potent LS in a production car.

What makes the LS7 so special?

Between 2006 and 2015, it was offered in GM’s high-performance vehicles. The greatest displacement engine in the LS family is the LS7. Because it was based on the C5-R Le Mans Corvette racing engine, it is distinctive. It was designed with excellent performance in mind.

Is LS3 better than LS2?

The LS2 engine will perform better than the LS3 engine because of forced induction, but making identical improvements on the LS3 engine will always produce more impressive results due to the extra refinement. So, if you’re looking for a lot of power, the LS3 will unquestionably be the better option.

Why is the LS3 the best engine?

It is reported that General Motors used the technology it acquired from its racing experience to design the LS3 block. This indicated that the LS3 engine was inherently light and robust. Its deep-skirt design increased strength while simultaneously lowering vibration and enhancing fineness.

What cars use the LS3 engine?

The high-revving, deep-breathing LS3 6.2L engine, which comes standard in the fifth-generation Camaro SS and C6 Corvette, is in line to become one of Chevrolet’s best and most useful engines.

What does LS in LS3 stand for?

The term “luxury sport” (LS) refers to the idea of developing a sporting engine that is primarily used for opulent purposes. It was with this in mind that LS engines were developed. LS engines from Chevrolet have a lot of horsepower and torque.

How do I know if my engine is LS3?

Gen IV engines, such as the LS3 or L99, are simple to identify since they have electronic throttles, as opposed to earlier engines, which had cable throttle actuation. 10. Cylinder heads are one of the most prominent LS engine variations.

What does LS stand for?

The LS stands for Luxury Sport, which is the most frequent explanation. This results from the terminology of LS and LT used to describe car trim levels (‘LT’ stands for Luxury Touring).
