Pipe joints, which unite individual pipes to form a continuous and safe flow channel, are crucial parts of plumbing and piping systems. Depending on the application, pipe material, and the necessary strength and flexibility, many kinds of pipe joints are used.
These joints guarantee structural integrity, leak-free connections, and simplicity of installation and upkeep. Threaded joints, soldered joints, welded joints, flanged joints, and compression joints are common pipe junction types.
Each has special benefits and is appropriate for a certain set of piping needs. Designing and building dependable and effective piping systems requires an understanding of the many kinds of pipe joints.
Well, in this reading, we’ll explore what a pipe joint is, its applications, diagram, and its types.
Let’s begin!

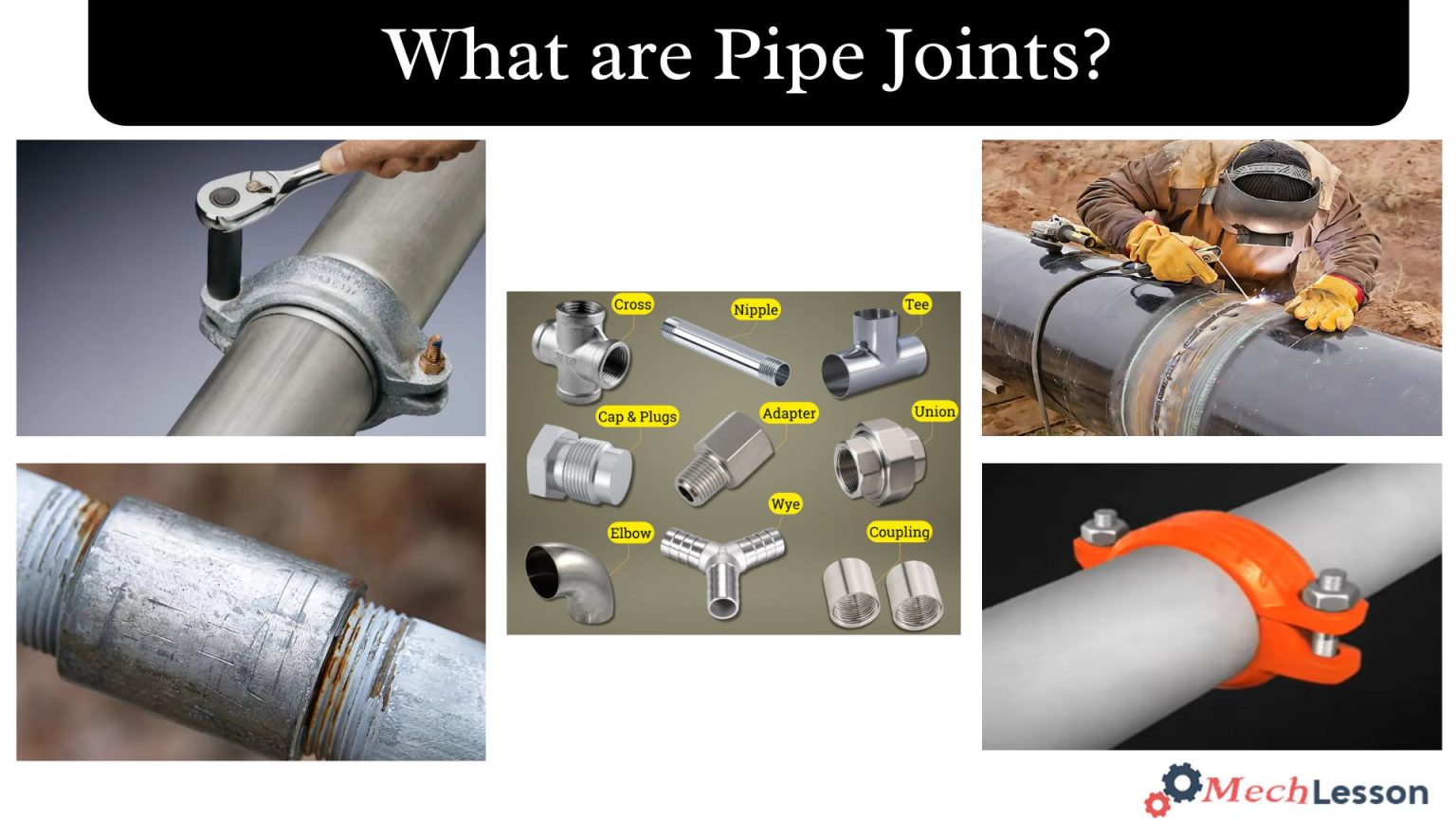

What Is A Pipe Joints?
A Pipe joints are connections used to join individual pipes together, creating a continuous flow path in plumbing and piping systems. Plumbing and piping systems employ pipe joints to link individual pipes and provide a continuous flow channel.
In order to ensure the effective movement of fluids or gases, these joints are constructed to offer safe and leak-proof connections.
The material of the pipe, its intended function, and the necessary strength and flexibility all influence the kind of pipe junction that is utilized, including threaded, soldered, welded, flanged, and compression joints.
The integrity and operation of piping systems depend on carefully chosen and fitted pipe joints.
Where are Pipe Joints Used
When pipes must be joined to form a continuous flow channel, pipe joints are utilized in a variety of applications. Pipe couplings are frequently utilized in the following areas:
Plumbing Systems: To link pipes for gas distribution, drainage, and water supply engineering, pipe joints are widely employed in residential, commercial, and industrial plumbing systems.
HVAC Systems: Refrigerant lines and pipes for the distribution of hot and cold water are connected by pipe joints in HVAC (heating, ventilation, and air conditioning) systems.
Industrial Piping Systems: Pipe joints are used in a variety of industrial contexts, including manufacturing facilities, chemical processing facilities, power plants, and oil and gas pipelines.
Municipal Water and Sewage Systems: Pipe couplings, which combine pipes that carry rainwater, wastewater, and potable water, are crucial to municipal water supply and sewage systems.
Irrigation Systems: To link pipes and deliver water for various irrigation techniques, agricultural and landscape irrigation systems use pipe joints. Pipe couplings, which interconnect pipes that deliver water for fire suppression in buildings and other structures, are essential components of fire sprinkler systems.
Process Piping: Pipe joints are used to link pipes in process piping systems for the transfer of fluids and gases in a variety of sectors, including petrochemical, food and beverage, and pharmaceutical.
Diagram
Types Of Pipe Joints
Different types of pipe joints used in plumbing systems are as follows.
1. Threaded Joint in Pipe:
These couplings use pipe threads and sealing agents like pipe dope or Teflon tape to screw the pipes together. Threaded connections are frequently utilized in low-temperature and low-pressure applications and are available in a variety of pipe diameters, ranging from 6mm to 300mm.
These connections might, however, enlarge in hot conditions and result in thermal expansion-induced leaking. Although threaded joints are simple to install, they require regular maintenance to function at their best.
2. Brazed Joint in Pipe:
The method of brazing involves joining pipes with molten filler material at temperatures greater than 840 degrees Celsius. Typically, brazing is used to connect copper or copper alloy pipes.
Tin, which has a strong affinity for copper, makes up the majority of the filler material. However, tin is added to other materials, including nickel, bismuth, silver, and copper, due to its weak properties.
Parent metal should have a greater melting point than filler metal. In comparison to other joints, brazed joints have poor mechanical strength. This kind of joint works well in regions with a moderate temperature range.
3. Pipe Soldered Joint:
The sole distinction between brazing and soldering is that the filler metal melts at temperatures lower than 840 degrees Celsius in the former process. Copper and copper alloy pipes are also joined via soldering.
To keep pipes and fittings from oxidizing from flames, flux, also known as paste, is applied before soldering. For installation, we also need trained individuals. Areas with low temperatures can benefit from soldered joints. Compared to brazed joints, they have a lower mechanical strength.
4. Butt Welded Joint in Pipe:
When the pipes have the same diameter, butt welding is used to connect them. In other words, there is no overlap between the two ends that are joined at the very end. In actuality, this kind of welding is the most prevalent. The most prevalent applications for these pipe systems are in commercial and industrial settings.
Because of the flat surface inside the joint, butt-welded joints in pipes can tolerate high pressures. It is not possible to open these joints for maintenance.
5. A socket or a coupler joint:
Using a coupler or socket is the most popular way to link pipes. A tiny bit of pipe thread within is called a socket. One pipe’s thread end was screwed halfway on, and the second pipe screwed in the other half of the socket.
Jute or hemp was twisted around the threads at the end of each pipe to stop leaks. The majority of the time, this kind of junction is utilized for low-pressure water pipes where general smallness is crucial.
6. Breast Joint:
A little piece of pipe that is threaded outside and put into each pipe’s internally threaded end is called a nipple in this kind of junction. This joint’s drawback is that its region of flow is diminished.
7. Union joint:
Unscrewing the pipe from one end is required to disconnect pipes connected via a socket. When pipes are lengthy, this can occasionally be inconvenient. By merely unscrewing a coupler nut, the union junction makes it possible to disengage the pipes.
8. Spigot and socket joint:
It is mostly utilized for underground pipelines. Certain pipelines are installed as straight as feasible. One of this joint’s key characteristics is its flexibility, which allows it to adjust to little variations in level brought on by the earth’s settling as a result of climate and other factors.
The spigot end of one pipe slides into the socket end of the other pipe in this kind of junction. A ring of lead and a jute rope fill the remaining gap between the two. The lead is securely caulked in once it has solidified.
9. Expansion joint:
Typically, an expansion joint is used to connect the pipes that transport steam at high pressures. Steam pipes employ this connection to absorb the expansion and contraction caused by temperature fluctuations.
Steam pipes are supported on rollers rather than being fastened firmly to accommodate a change in length. The rollers can be mounted on floor stands, hooks, or wall brackets. In a lengthy pipeline, the expansion bends are helpful.
These pipe bends can easily adapt to little movements of the pipe ends they are linked to, and they will spring in either direction.
10. Flanged Joint in Pipe:
Among the most popular pipe joints is this one. Flanges that are cast integrally with the pipes or loose flanges that are welded or screwed together can be used to create a flanged junction. Two pipes made of cast iron that have built-in flanges on both ends.
Bolts are used to join the flanges. For pressures as high as 2 N/mm2, the flanges have been standardised. To guarantee that the pipes are aligned correctly, the flange faces are machined.
By sandwiching a soft material, rubber, or canvas gasket between the flanges, the junction can be rendered leakproof.
For strength, the flanges are thicker than the pipe walls. By thickening the pipe for a little distance from the flange, the pipes can be reinforced for high-pressure service.
The flanges are further reinforced with stiffeners or ribs for big diameters and even high pressure. The bolt holes are separated by the ribs.
11. Compression Joint in Pipe:
When fittings are installed at the ends of pipes that have plain ends, the junction is known as a compression joint. The pipe ends are joined because they will be fitted with threaded fittings or couplings.
Thus, pipes of various diameters and materials can be connected in this situation. However, the joints must be installed correctly to withstand flow pressure; otherwise, they risk failing and leaking. Compression fittings come in a variety of materials, and the choice of fitting may be influenced by our needs.
12. Grooved Joint in Pipe:
When there is a grooved junction, an elastomer seal connects the pipe ends’ grooved edges. The elastomer seal is fastened by ductile iron grooved couplings. Bolts hold these grooved couplings together. These joints are affordable and simple to install.
Because of thermal expansion, grooved joints will permit modest axial movement and provide adequate pressure resistance. However, elastomer seals may lose their strength and experience torsional failure in hotter climates.
Therefore, they are allowed in regions with mild temperatures. Because grooved joints are simple to remove, they are better for pipe maintenance.
13. Hydraulic pipe joint:
This kind of connection is secured with two bolts and has oval flanges. Small pipes with a diameter of up to 175 mm are often fitted with oval flanges. Typically, the flanges and pipe ends are cast integrally.
Fluid pressures ranging from 5 to 14 N/mm2 are carried by these joints. Hydraulic applications such as riveting, pushing, lifting, etc. use such high pressure. Pumps, accumulators, intensifiers, and other hydraulic devices are employed in these installations.
FAQs
What is a pipe joint?
What Does Pipe Joints Mean? Pipe joints are connections at pipe ends that ensure that two pipe sections can be joined to each other to install a pipeline of any length. Joints give strength to the pipeline because longer pipeline sections tend to bend.
What are the names of pipe joints?
Common types of pipe joints include threaded joints, soldered joints, welded joints, flanged joints, and compression joints, each offering unique advantages and suitable for specific piping requirements.
What is the joint between two pipes?
A butt joint is one of the most common types of pipe beveling joints, where two pipes are joined end-to-end. Its simplicity and ease of welding make it suitable for applications in construction, plumbing, and oil and gas industries.
What is the most common pipe joint?
Bell and spigot joint — This is the most common joint used to join plastic pipes. Its construction consists of a smooth-walled bell that is sized to accept a gasketed pipe spigot.
