A self-priming pump is a particular kind of fluid pump that requires a liquid to be poured into the pump cavity or body before it can begin to pump. Process facilities that employ pumps for a number of repetitive but sporadic tasks have the chance to improve operational efficiency thanks to this design element.
By keeping fluid in the pump body, the pump can better manage “air pockets,” which are collections of air bubbles in the pump’s working mechanism that can hinder effective performance.
Self-priming pumps are perfect for applications where fluid must be raised from below the pump because they are made to remove air from their passageways and start up again without help from an outside source. The main characteristics and factors to be taken into account while utilizing self-priming pumps are examined in this article.
Self-priming pumps are actually filled with the appropriate fluid beforehand via a tiny port on the pump body (the chamber containing the impeller). Following this, the pump may be turned on, creating turbulence that causes the fluid to ascend and “clear” the air pipe.
Well, in this reading, we explore what a self-priming pump is, its applications, diagram, types, and how it works. We also discussed its advantages and disadvantages
Let’s get started!

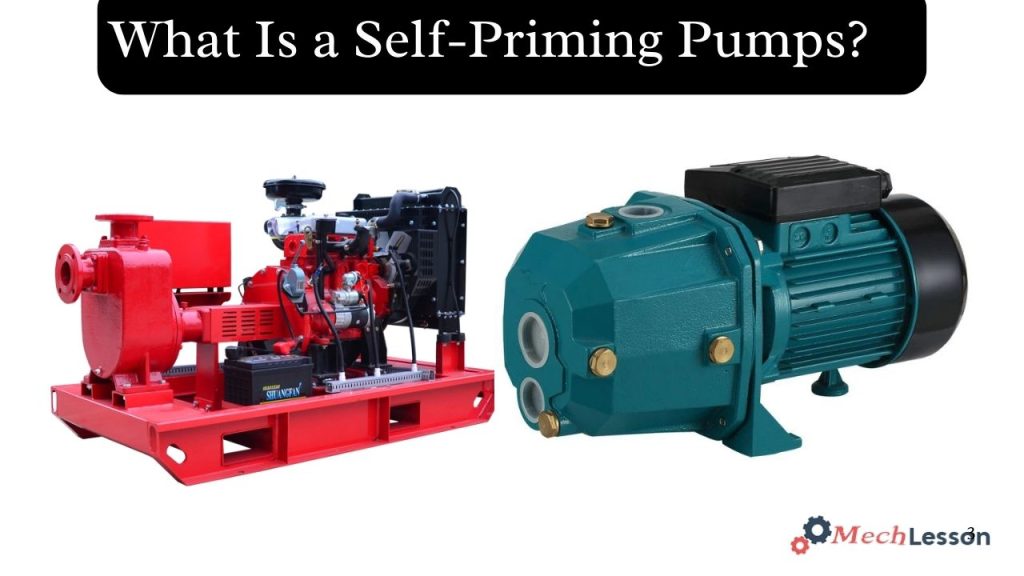

What is a self-priming pump?
A particular kind of liquid pump called a self-priming pump is made to have the necessary liquid inside the pump body or cavity in order to initiate the pumping process. In process plants where pumps are utilized for a range of repetitive yet sporadic tasks, this presents the possibility of higher operating efficiencies.
A self-priming pump was basically designed to allow the pump to reprime itself generally during lift situations. If it gets air-bound, it may clean its channels and continue delivering the pumpage without assistance from outside sources.
Without the need for additional auxiliary equipment, a self-priming pump may remove air from the pump suction line and raise fluid from a level below the pump.
Gravity and air pressure make sure that a pump that is positioned below the level of the liquid to be pumped is always filled with the liquid and that air cannot enter the pump or suction line.
In many situations, such as when emptying an underground storage tank, a pump must be positioned above the liquid’s level. The suction line will contain air at startup, which needs to be removed or displaced before the pump can release the liquid.
Pumps are designed to move a specific liquid; evacuating a gas presents a completely different set of difficulties. There are several ways to circumvent this issue.
The suction line can be evacuated using a secondary pump. When the pump is turned off, fluid can be prevented from draining from the suction line by using an evacuation tank or non-return (foot) valve.
All of these solutions, though, call for additional machinery, pipes, and procedures. A pump that can remove air from the suction side at startup before switching to its regular pumping mode is ideal for these applications. This type of pump is regarded as self-priming.
Applications of Self-Priming Pumps
Self-Priming Pumps in Industrial and Commercial Facilities
- Used in various industrial and commercial facilities, including steel mills, power plants, sewage treatment facilities, wineries, breweries, etc.
- Common applications include pumping water, fuels, raw sewage, industrial wastewater, liquid transfer systems, irrigation, basement floodwater pumps, bailing out boats, increasing water pressure, and sewage treatment.
- Domestic Water Supply: Ensures consistent water flow for residential needs.
- Well Water Systems: Swiftly removes air and gases from well water systems.
- Construction and Dewatering: Rapidly dewaters construction sites and handles temporary water accumulation.
- Marine Industry: Removes unwanted water from boats and ships, handling air-water mixtures in maritime environments.
- Agriculture and Irrigation: Ensures efficient water distribution for agricultural land and addresses challenges of variable water sources.
- Used for moving liquids, ingredients, raw materials, and semi-finished products.
- Pump CIP fluids for cleaning and sanitizing pipes and plant components.
- Facilitate fluid movement from storage vessels to another.
- Perform drum and tank emptying operations.
- Also used in construction, agriculture, and water treatment sectors for efficient water extraction and pumping.
Diagram
Types of Self-Priming Pumps
- Positive Displacement Pumps: Use a piston or diaphragm for precise fluid movement. Suitable for viscous fluids or solids.
- Diaphragm Pumps: Use a flexible diaphragm for handling corrosive fluids or solids.
- Each type offers unique advantages, suitable for various industrial and commercial applications.
Common problems of Self-Priming Pumps
A number of factors can influence a pump’s capacity to self-prime. There must be no pressure or obstruction on the discharge line. Any kind of pump requires an airtight suction line. The pressure is never lowered and fluid is not pulled up the suction line if air is still being sucked into the pump.
To cut down on priming time, it’s also critical to reduce the suction-side pipework’s capacity. There is a risk that the liquid charge will evaporate before the pump is primed if priming durations are too long. The pump may then sustain damage as a result of the resulting dry running.
Anything that reduces the impeller’s efficiency will restrict the centrifugal pump’s capacity for self-priming. Debris may accumulate in the recirculation port if the liquid includes any particles, preventing the fluid from circulating and the formation of the liquid ring.
The impeller’s capacity to create a low pressure area near the eye will be diminished if debris builds up on the impeller. Additionally, a pump’s ability to create a low pressure zone decreases as it ages and wears down due to increased clearances between the impeller and volute case.
Incorrect assembly following maintenance might potentially have an impact on internal clearances. It’s crucial to empty a pump or offer some kind of warmth while pushing water in cold climates when the temperature might drop below freezing. If water freezes in the piping or pump, damage might result.
How do Self-Priming Pumps work?
Self-priming pumps create a partial vacuum to discharge water while evacuating air by combining air and water during the priming process. This process forces the air to rise, causing the water to sink or go down.
Gravity then pulls the air-free water back into the impeller, where it mixes with the remaining air in the suction line. This process repeats until all air is evacuated and a vacuum forms in the suction line.
Some pumps are engineered to be automatically self-priming, featuring close-tolerance working parts that trap fluids in the pump’s body. This constant presence of fluid allows the pump to better handle “air pockets,” which are accumulations of air bubbles in the pump’s working mechanism.
Most liquid pumps used in the sanitary processing industries are centrifugal-type pumps, which are simple, sturdy, relatively inexpensive, and ideal for pumping low-viscosity fluids like CIP solutions under difficult suction conditions.
Standard centrifugal pumps do not trap liquids when not in use, but engineered modifications may allow some of these types to be self-priming.
The pumping action occurs when an impeller is rotated in a liquid within a cavity or chamber of the pump, displacing the liquid and forcing it to flow into the discharge port via centrifugal force.
Air is the primary enemy of standard centrifugal pumps, as they do not feature tightly coupled pumping mechanisms and have no seals between the suction and discharge sides of the pump.
A self-priming centrifugal pump features a liquid reservoir built into the body, typically above or in front of the impeller, which allows the pump to rid the pump’s body and suction line of air during the priming cycle.
Advantage of Self-Priming Pumps
Benefits of Pumps That Prime Their Own
Elimination of Manual Priming
Description of the Manual Priming Procedure: Imagine if you had to manually pour liquid into a traditional pump before it would start up. It’s a labour-intensive and time-consuming process that is tiresome.
The Automatic Priming Process of Self-Priming Pumps: Conversely, self-priming pumps are like mechanical maestros. They are designed with an advanced system that eliminates the need for manual priming by removing gases and air from the suction line. What was the outcome? Instant pump initiation with little trouble.
Handling of Air and Gases
Air and Gas Challenges in Conventional Pumps: Managing air-water mixes presents a number of difficulties for conventional pumps. Cavitation caused by the presence of air can lower pump efficiency and even cause damage.
Self-Priming Pumps’ Capability to Manage Gas and Air Mixtures: Self-priming pumps adeptly navigate this obstacle. Their clever air evacuation system gives them a special capacity to manage gases and air in the suction line. Without the interruptions brought on by air entrapment, this guarantees a steady and continuous flow.
Savings on Time and Labor
A Comparative Analysis of Priming Time for Self-Priming and Non-Self-Priming Pumps During the priming process, typical pumps use up a significant amount of time, which is a valuable resource. Like sprinters off the block, self-priming pumps start working right away without any priming pauses.
Minimised Need for Personnel Intervention: Self-priming pumps are a boon to enterprises with overworked labour forces. They allow staff to concentrate on other important duties since they need less manual monitoring and involvement.
Versatility and Ease of Installation
Application in a Range of Fluid Types: Self-priming pumps are the chameleons of the pumping industry, as fluids have a wide range of viscosities and compositions. They can easily handle a wide variety of fluids, which allows them to be used in a wide range of applications.
Lower Installation-Related Infrastructure Needs: Complex pumping systems might be intimidating to install. By doing away with the need for complex priming systems, self-priming pumps streamline this procedure. In addition to cutting down on installation time, this also requires less infrastructure.
Disadvantage of Self-Priming Pumps
Disadvantages of Self-Priming Pumps
Initial Cost
Greater initial outlay of funds in contrast to standard pumps: Self-priming pumps are not an exception to the rule that innovation has a cost. Because of their sophisticated design and automated features, they sometimes need a larger initial investment.
Assessing Long-Term Cost-Effectiveness: But it’s important to see things from a wider perspective. Over the course of the pump’s operating lifetime, its efficiency and labor-saving benefits might result in large cost reductions, even if the initial cost may be painful at first.
Complex Design and Maintenance
Complex Mechanisms: Self-priming pumps are complicated machines with sophisticated workings. Their extraordinary skills are supported by this intricacy, but it also presents difficulties for upkeep and repairs.
The value of skilled technicians and routine maintenance Maintenance is essential for any machinery, including self-priming pumps. It takes knowledgeable specialists who can handle the complexities of their design to guarantee their best functioning.
Poor Results at High Suction Lifts
A Brief Overview of Suction Lift in Pumping Systems Imagine a straw in a liquid-filled glass. The suction lift is the height at which the liquid ascends in the straw. Pump efficiency decreases as this height rises.
Reduced Efficiency of Self-Priming Pumps at High Lifts: Despite their many impressive features, self-priming pumps perform worse at high suction lifts. They are less effective in these situations due to the complexity of their air evacuation process.
Sensitivity to Particle Size and Viscosity
Effect of Particle Size on Pump Performance: Self-priming pumps may encounter difficulties in situations when fluids include significant particle matter. Particles can impede efficiency and cause blockages.
Resolving Limitations in Self-Priming Pumps Caused by Viscosity: Another problem is viscosity, which is a measurement of a fluid’s resistance to flow. When working with very viscous fluids, self-priming pumps may run into problems. To overcome this obstacle, creative design changes are required.
FAQs
What is a self-priming pump?
A particular kind of liquid pump called a self-priming pump is made to have the essential liquid within the pump body or cavity in order to initiate the pumping operation. In process facilities where pumps are utilised for a range of repetitive yet sporadic tasks, this presents the possibility of higher operational efficiency.
Which is better, self-priming or centrifugal pump?
Understanding Pump Types: Self-Priming vs. Centrifugal Pumps
Although centrifugal pumps may be utilised for suction lifts, air entrainment problems must be resolved manually or with the use of outside techniques. Self-priming pumps provide a more practical and effective solution in these situations.
What are the disadvantages of self-priming pumps?
The fact that self-priming pumps are typically less efficient than running a conventional pump is possibly their largest drawback. bigger clearances are often necessary, particularly when working with solids, and a bigger volute is needed to enable the self-priming process.
Where are self-priming pumps used?
-Efficiency: Self-priming pumps can save energy and save running expenses over time because of their great operational efficiency. – Versatility: Self-priming pumps may be employed in a wide range of industries, including industrial, construction, irrigation, and water supply.
What is the purpose of priming a pump?
In centrifugal pumps, priming is an essential procedure that guarantees the pump is full of fluid before it is turned on. Priming entails packing the pump casing with the fluid to be pumped, clearing the air out of the casing, and sealing the impeller and casing together.
