In engineering, the marking-out tools and the operator’s use of them determine the proper development of an item. Any engineer can attest to the importance of marking out and measuring during the development of an item.
If a project is wrongly measured and marked out or not planned, there is a 95% probability that waste materials will occur and mistakes will occur.
Furthermore, transferring or sketching a design or pattern onto a material’s surface is known as marking out. It is necessary to accurately cut a variety of shapes, including holes.
sketching is the initial stage; it should include measurements, edges, and information about where to make the cuts and holes. Transferring the drawing to the material is the second stage. This reading will cover measuring and marking tools and their uses.
Let’s Get Started!

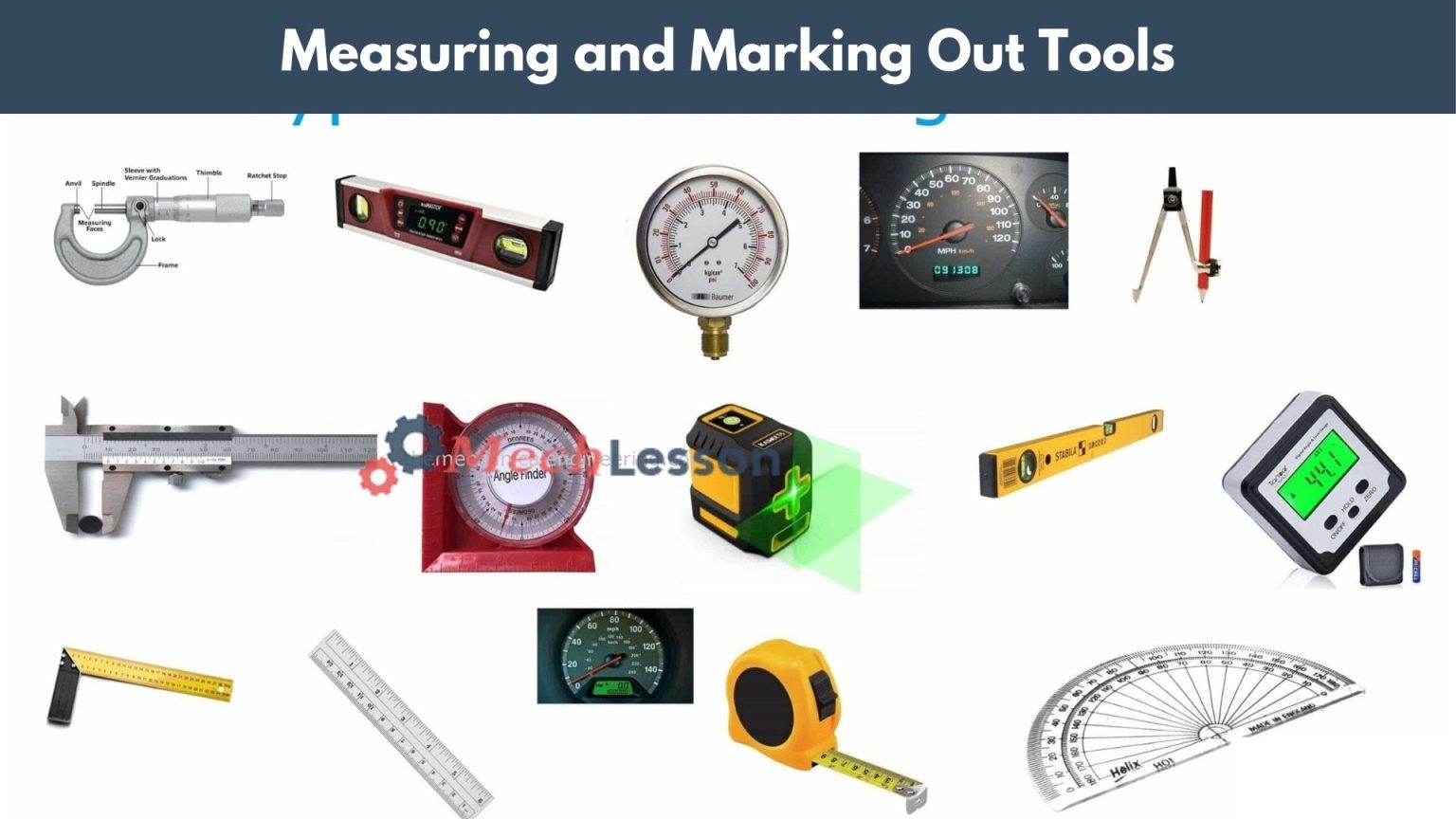

Types of Measuring and Marking Out Tools
The various kinds of measuring and marking out tools are stylus, caliper scriber, measuring compass, punch, ruler, square, center head, fixing clamp, line measures, marking out boxes, dividers, surface plates, bar markers, and marking out plates.
1. Pencil
One of the most popular marking-out tools is the pencil due to its easy cleaning. The right way to use it is to sharpen its edge very lightly in order to give thin, light lines that won’t engrave the workpiece.
Related: 16 Different Types of Forging Tools, Their Uses & Diagram
2. Steel Rule
These steel measuring tools create a rigid straight line on a flat surface. It can measure at least 300 mm in length. If one does not use the measuring tools ideally, the path becomes inaccurate.
3. Measuring Tape
The measuring tape is an instrument that houses a thinning sheet in a rubber case with numbers labeled on it. It can measure at least 5 m long, making it applicable to large projects. When used carelessly, the flexible sheet can twist and break.
4. Marking Gauge
Types of marking-out tools known as marking indicators scribe lines parallel to edges, facilitating the removal of waste material. For instance, in a woodwork project where a small part needs to be cut off, a marking gauge can be used to scribe out the unwanted part that will be chiseled away.
5. Try Square
To mark out a workpiece, use the try square to draw perpendicular lines on a material. Try squares serve the purpose of ensuring that paths are parallel to each other and aid in drawing lines at right angles to edges.
6. Mortise Gauge
A mortise gauge serves as a marking-out tool, allowing the inscription of two lines parallel to an edge. Before marking the workpiece, you can adjust and set its two sharp spurs to the width of the mortise chisel. Woodworking often uses these marking-out tools.
7. Sliding Bevel
Use the sliding bevel to mark out a part, then adjust it to create the required angle. Next, mark the line on the material with a pencil.
8. Engineer’s Square
These hand tools use a scribe to draw a perpendicular line on material. Place it on the workpiece surface, ensuring the flat edge remains firm.
9. Spring Dividers
We use these hand tools to scribe an arc or draw a circle on materials. They have two legs and look very similar to a compass. They firmly place one leg on the workpiece while the other leg rotates, scribing a circle or arc onto it.
10. Scriber
These popular hand tools help to mark a line on a material. It contains a sharp point and acts as a pencil to engrave a fine line on surfaces like metal or plastic, where pens might not correctly work.
11. Center Punch
The center punch helps to indicate a center dot for drilling. We drive the point of the center punch into the metal with a hammer, leaving a small surface impression.
12. Odd-Leg Calipers
The old-leg calipers assist in inscribing a parallel mark on metal or plastic. The old-leg calipers are designed with two legs, one featuring a guiding edge with a foot, and the other with a scribe point. The scribing edge marks a line parallel to the edge, while the guiding side runs along the object’s edge for scoring.
13. Inside Calipers
These types of marking-out tools look very similar to the odd-leg calipers. We use them to measure distances on the inside of materials such as tubes.
These calipers also feature two legs, with the guiding feet pointing outwards. Place the braces inside the material or object to measure, then extend them until the feet make contact with the material.
14. Outside Calipers
The outside calipers aid in the measurement of thicknesses and outside diameters of materials. Place them around a material, tighten the legs so the guiding feet meet the workpiece, and remove them without adjusting.
Then, we measure the leg span against a steel rule to get an accurate reading.
15. Micrometer
This tool provides a precise measurement of an object. It is a more accurate version of outside calipers and can give an accurate measurement of the outside edges of the material.
16. Templates
When marking out numerous identical shapes or patterns, a template is useful. You can make a template from any thin material, such as plywood or aluminum, or an object that is easy to draw around.
17. Laser Level
A laser level is a measuring device that consists of a spinning laser beam projector that can be secured to a tripod. The accuracy of the tool determines its level, and it projects a fixed red or green beam in a plane around the horizontal and/or vertical axes.
Certain varieties can measure the distance between the unit and the laser beam’s terminus, providing a quick and precise worksite distance measurement solution. The construction and surveying industries extensively utilize laser levels for leveling and aligning applications.
18. Micrometer
These types of measuring tools look like a caliper, but instead of sliding, it screws down. The measurement object sits between the extremely accurate spindle and the anvil.
Adjust the ratchet knob to rotate the spindle until the object reaches the measurement point. They are sometimes known as screw gauges in addition to the word micrometer.
Digital micrometers quickly measure the work distance between their two caliper heads.
Mechanical engineering, manufacturing, and most mechanical trades commonly use a micrometer and other metrological devices like dials, verniers, and digital calipers for precise component measurement.
19. Caliper
You can use a caliper to measure an object’s thickness, outside and interior diameters, length, width, and depth. Usually made of steel, these measuring tools offer multiple dimension measurements.
Engineering, medical, building, home improvement, and metallurgy are among the industries that use them.
Using a fixed ruler, simply adjust the calipers’ tips to fit across the object to measure, then remove the calipers to measure the entire length. Calipers come in a variety of styles that allow you to read measurements on a controlled scale, dial, or digital display.
In addition, calipers are tools for measuring the separation between two surfaces of an object.
The caliper is removed, and the reading is obtained by measuring the distance between the tips using a measuring tool, such as a ruler, after the tip of the caliper has been adjusted to fit the points being measured.
There are numerous varieties of calipers, including outside, inside, spring, transfer, and hermaphrodite calipers.
20. Bubble Inclinometer
If you need to determine a specific inclination, an inclinometer is a must-have tool. Engineers specifically developed these to measure the range of motion of a joint and the stability of the grade.
To measure the range of motion of a joint, set the bubble inclinometer to zero and track the difference as it changes. Sports therapists frequently use it to check for a healthy range of motion at key points on the body.
21. Angle Locator
An angle finder is another name for an angle locator. It’s the ideal instrument for measuring angles and replicating an existing area’s angle. Construction and carpentry frequently utilize these measuring tools.
These measuring tools have a magnetic base that enables mounting on metal measuring sections. It’s a digitally displayed manual tool.
To determine your angle, place the ends of this angle locator on the workpiece and utilize the readings acquired. The angle locator allows you to quickly and easily measure angles from 0° to 90°. When you need to determine an angle within a closet or a tiny place, having a tool like this will make the job much easier.
22. Protractor
Protractors are half-circle-shaped measuring devices often constructed of plastic or glass. We commonly mark these with degrees and use them to measure angles. Occasionally, you will find more mathematically oriented protractors that measure in radians.
Shaped like a semicircle, a common protractor features an inner and outer scale with marks ranging from 0 to 180 degrees. An angle protractor is a tool that engineers and designers use to obtain more precise measurements.
A bevel protractor is a more advanced variant of a protractor that has one or two swinging arms for measuring angles.
23. Ruler
In geometry and technical drawing, as well as in the engineering and construction sectors, a ruler serves as a tool for measuring distances and drawing straight lines. In the commercial world, engineers typically use them to ensure accurate measurements on flat surfaces.
We use both metric and customary units to measure a ruler. The usual distance above the ruler is in centimeters, and below it is in inches, with the hash mark indicating the spacing in the ruler. Rulers are arguably the most widely used measurement tool in today’s world.
24. Pressure Gauge
The pressure methods measure the analytical force that the fluid applies to a surface. Consequently, we use the pressure gauge to measure and display the fluid pressure as a single unit. We measure pressure as the force per unit of surface area.
Pressure gauges measure everything from height to air pressure to depth to blood pressure. A pressure gauge has the advantage of being simple to see and frequently appearing on the screen quickly. The most prevalent forms of analog pressure gauges are hydrostatic and aneroid gauges.
25. Odometer
Automobiles use the odometer, a type of measurement device, to determine how far a vehicle, such as a bicycle or a car, has driven. There are several uses for a car’s traveled distance.
It can be made electronically, mechanically, or by combining the two methods (electromechanical). The most common are mechanical odometers, installed on a flexible cable with a tightly wound spring.
Digital odometers, which offer more functions and are less expensive, are gradually replacing these mechanical odometers due to their lack of accuracy.
26. Level
A level serves as a measuring tool for displaying the horizontal plane. The level is an optical instrument that displays measured findings by using air bubbles in a liquid media. We seal the tube and attach it horizontally to a smooth-bottomed block of wood.
Builders commonly use longer-level instruments, which range in length from two to six feet. Builders commonly use longer-level instruments that range in length from two to six feet. Construction, woodworking, and metalworking shops all employ them.
27. Digital Angle Gauge
Workers established angle gauges due to the importance of measuring angles and their desire for dependable data. These types of measuring equipment simplify the measurement of any angle surfaces attached to them.
A digital angle gauge is faster, easier to operate, and more accurate than an analog angle gauge. It includes a powerful magnetic base as well as automatic calibration settings for establishing the correct bevel and miter angles on powered saws.
They’re not only inexpensive, but they’re also extremely precise.
28. Compass
You can use a compass for a variety of tasks like algebra, drafting, navigation, and more. If you’re an architect, you’re probably already familiar with the concept of a compass. Shipbuilding and carpentry processes extensively utilize it.
Usually made of metal, compasses feature two adjustable “legs” that allow you to change the radius of the circle you draw. A compass is a technical drawing instrument for writing circles and arcs. You can also use it as a divider to separate distances, particularly on maps.
29. Thermometer
Thermometers are special types of measuring tools used to measure temperature, as the name implies. It is necessary for a variety of activities such as manufacturing, scientific research, and medical practice. Thermometers are often inexpensive, long-lasting, accurate, and simple to calibrate.
The thermometer consists of two components: a temperature sensor that responds to temperature changes, and a mechanism to convert these changes into a numerical value.
Technology, industry, meteorology, medicine, and scientific research widely employ thermometers to monitor processes.
30. Speedometer
One of the common types of measuring tools for determining and displaying a vehicle’s immediate speed is a speedometer. In the early twentieth century, they became available as alternatives. Since 1910, motor vehicles have frequently fitted these as standard equipment.
A round magnet powers the speed-indicating mechanism of the speedometer, rotating 1,000 times per mile of vehicle travel. Other vehicles’ speedometers have different names and employ different speed-sensing standards.
We can classify these measuring tools as precision measuring equipment.
How to use Measuring and Marking out Tools
The following will help you know how to use measuring and marking-out tools correctly:
- Knowing tools and where it are ideally used
- Reading dimensions from drawings or sketches correctly
- use the right tools for the right job; don’t compromise
- know how to use tools correctly and accurately
- make a review of any measuring and marking-out to ensure its accuracy
Related: 18 Different Types of Sand Casting Tools and Their Uses
Bottom Line
The wide range of marking-out instruments offers the foundation for precision in several fields, such as building, metalworking, engineering, and woodworking.
Every measuring and marking tool, from the basic rulers and squares to the more complex instruments like height gauges and bevel protractors, has a specific function in precisely conveying measurements and constructing accurate layouts.
The selection of marking instruments is contingent upon various criteria, including the type of material being worked on, the degree of precision required, and the particular task at hand.
Proficiency in using a variety of marking-out instruments is crucial for professionals and craftspeople whose work demands accuracy.
In order to achieve consistency and quality in design, construction, and manufacturing, these tools are essential. Individuals and organizations can make sure that their tasks are completed with precision, effectiveness, and a high degree of craftsmanship by choosing the appropriate marking-out devices for the job.
