Arc stud Welding is a reliable method for fastening a wide variety of materials, including base metal. A metal stud, or weld stud, is heated and joined to a metal workpiece using an arc. This process creates strong, one-sided welds on the base metal, even as thin as 0.048 inches. The stud tool or gun is used to place the stud against the base metal, creating a molten pool.
This process eliminates marring on the other side of the workpiece, making it suitable for various applications. It is commonly used in the automotive industry for welding heat shields, power steering, dashboard components, instrument panels, exhaust systems, insulation, electrical wire routing, lighting systems, brake lines, and trim.
Well, in this reading, we’ll explore what arc stud welding is, its applications, diagram types, advantages and disadvantages, and how it works.
Let’s Get Started!
What is Arc Stud Welding?
Arc stud welding is a process by which a metal stud is joined to a metal workpiece with the aid of arc. Arc stud welding is a reliable method of fastening for a wide variety of applications. It can quickly weld any size, and create strong, one-sided welds on the base metal, even as thin as 0.048 inches. It uses a DC power supply to create the arc, which produces the joint in just 0.06 seconds.
Arc stud welding is used to weld large diameter fasteners to rougher and thicker base metals, there are hundreds of stud welding designs but they are almost the same shape and they must have on end of the fastener suitable for arc welding equipment. Stud welding machines operate on both three-phase and single-phase power supplies, however, three-phase power provides more stable and continuous power. This is why it is suitable for heavy-duty industrial applications.
Diagram of Arc Stud Welding & Machine
Applications of Stud Welding
Arc stud welding is a versatile welding technique used in various industries, including jewelry, hardware, cookware, electrical housewares, electronic devices, and doors. It is particularly useful in the automotive industry for welding heat shields, power steering, dashboard components, instrument panels, exhaust systems, insulation, electrical wire routing, lighting systems, brake lines, and trim.
In the farm equipment industry, it is used to assemble fenders, brackets, cabs, spreaders, shrouding, wiring, and hose management parts. In the construction equipment industry, it is used to make cover plates, non-skid devices, and wiring and hose management parts. In the commercial appliance industry, it is used in commercial dishwashers, bottle washers, cooking equipment, and griddle plate assemblies.
Furniture manufacturers use it for metal household and office furniture, lawn furniture, shelving, and racks. Assemblers of fabricated metal products use arc stud welding in barbecue equipment, enclosures, plumbing apparatus, insulation enclosures, heating, ventilation and air-conditioning units, and water storage systems.
In the industrial equipment industry, it is used to assemble inspection cover plate attachments, enclosures, flow indicators, material handling equipment, and controls. Shipbuilders also use it to attach insulation, wire management devices, and hatch covers.
Related: How Does Stud Welding Works?
Types of Arc Stud Welding
Below are the types of arc stud welding:
Draw Arc Stud
Drawn arc stud techniques work with a flux, that is embedded into the stud to clean the metal surface before the joining takes place. It reacts with the contaminating elements in the atmosphere to keep the weld area clean. The flux, later on, vaporizes when it feels the arc heat.
Short Arc Stud Welding
As for the short arc stud techniques, it is much similar to drawn arc, their differences are that short arc techniques use no flux or ferrule. The process is achieved in a very short time, making it to be characterized by high current and short time welding times. It is suitable for many high-volume applications and can produce a porous weld. This arc stud process should be selected when speed and cost are considered over weld strength.
Gas Arc Stud Welding
In gas arc welding techniques, inert shielding gas without flux or ferrule is supplied to the weld area, making it easier to be automated. The shielding gas is delivered by a spark shield. The welding gun is positioned for welding, immediately after the gun is triggered, the shielding gas flows into the welding area, as the stud is lifted up.
The arc generated melts the stud while lifted and the base metal. When the molten pool occurs, the stud is then pressed to the base metal, as the shielding gas continues to flow into it until the molten metal cools and creates the joints.

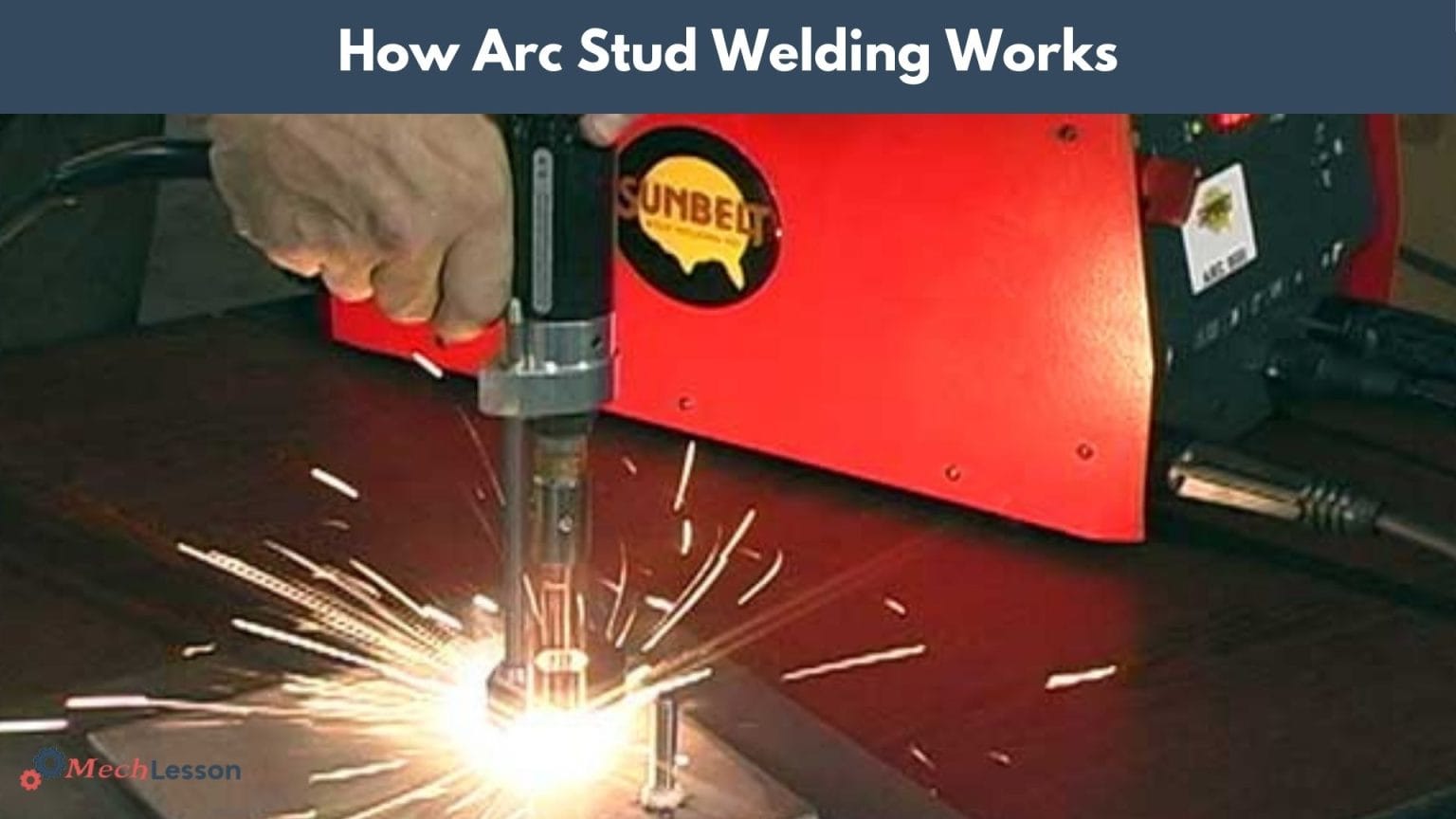

How Does Arc Stud Welding Works?
Arc welding is a process used to weld large diameter fasteners to rougher and thicker base metals. Arc Weld Studs, which come in various shapes and designs, must have one end designed for Arc welding equipment. Materials like mild steel, stainless steel, and aluminum are suitable for Arc welding.
Arc Weld Studs are placed against the work surface under spring tension in a stud welding gun. A controlled electric arc melts the end of the weld stud fastener, causing it to be lifted from the base metal. A ceramic arc shield concentrates heat for maximum weld strength and reliability.
As the fastener and parent metal become molten, the stud welding gun plunges the fastener into the work surface, resulting in a high-quality fusion weld. This process ensures the metal solidifies and a high-quality fusion weld is completed.
Related: How Does Shielded Metal Arc Welding (SMAW) Works?
Advantages and Disadvantages of Arc Stud Welding
Arc stud welding is a popular welding method that offers several benefits, including high-quality welds, faster welding time, greater control over the welding process, and a safer welding process. This method uses an electric arc to heat the metal, creating stronger bonds between workpieces without warping or distortion.
Arc stud welding also requires less skill from the welder due to automatic control of heat and pressure applied to the metal. This eliminates the need for manual adjustments, making it suitable for people with less experience or training. Additionally, arc stud welding is considered safer than other welding methods due to the absence of open flames and fewer fumes and smoke exposure.
However, arc stud welding has limitations, such as being limited to smaller projects due to the difficulty of controlling the welding bead. Specialized training is required for welders to perform this welding process, as it differs from traditional welding. Additionally, arc stud welding equipment is expensive, making it cost-prohibitive for some businesses.
Time-consuming, arc stud welding is time-consuming due to individual welds and the need for cleanup. It is not suitable for all metals, as some metals like aluminum cannot be welded with any welding method, and some metals may require special electrodes or gas mixtures.
Lastly, arc stud welding can result in arc welding hazards, such as emitting harmful ultraviolet rays, which can cause skin cancer, and producing harmful toxins like cadmium and lead. Overall, while arc stud welding offers advantages, it is important to consider the specific needs and safety requirements of each project.
