In stud welding, a fastener or specially formed nut is welded onto another metal workpiece, like base metal or substrate. These fasteners can take different forms but are typically classified as threaded, unthreaded, or tapped.
Stud welding is widely used in different industries such as shipbuilding, military applications, automobiles, construction, agriculture, etc. Stud weld joints are often seen in bridges and buildings.
During the welding process, weld studs are used and manufacturers create weld studs in two forms, such as stud welding by capacitor discharge and drawn arc stud welding. Well, in this reading, we’ll explore what stud welding is, its applications, parts, diagram, equipment, types, advantages, disadvantages, and how it works.
Let’s Get Started!
Related: How Does Flux-Cored Arc Welding (FCAW) Work?
What is Stud Welding?
Stud welding is a joining process by which a metal stud or fastener is joined to a workpiece by using arc heat to weld both parts together. It is a fast-fastening process that is performed in a few steps when compared with other processes.
The fastener may be threaded, unthreaded, tapped, etc. and they can of various materials such as steel, stainless steel, aluminum, etc.
Stud welding techniques are similar to flash welding that allows a fastener or formed nut to be welded onto a workpiece, typically a base metal or substrate.
The stud welder automatically feeds the bolts, and the weld nuts feature flanges with small nubs that melt to form the weld. A weld stud can be end-hoined to a metal workpiece to give a high-quality, high-strength permanent bond.
Another good thing about stud welding is that the base metal and the welded stud fastener must not be the same metal material. For instance, brass can be welded to copper, or brass to steel, copper to steel, and other similar combinations.
Applications
The applications of stud welding are so versatile that manufacturers, engineers, and professionals use them to effectively join weld studs and other fasteners to metal materials like sheet metal.
Stud welding operators join weld studs to metal components like circuit boards, switches, buttons, machinery guards, pipes, cover plates, handles, hatches, fireproofing, etc.
They are highly used in industries like shipbuilding because they offer maximum-strength connection points, giving ships the structural integrity they need.
Stud welding is also useful in smaller decorative applications such as badges, nameplates, signs, jewelry, and homewares.
Industries that make use of stud welding are Aerospace, Appliances, Automotive, Construction, Electronics, forging processes, Insulation Installation, Light and Heavy Duty Equipment, Offshore, Petrochemical, Shipbuilding, Signs and Decorative Trim, Toys, Transportation, and Utilities Metalworking The following are the applications of stud welding:
- It is a widely used process as it provides a single-sided phase, covering the stud zone.
- It is used for managing wires around equipment
- Widely used in shipbuilding and military applications
- It is also used on moving equipment like automotive, construction, agriculture, trailers, etc.
- Finally, it is used in buildings and bridges.
Related: How Does Submerged Arc Welding (SAW) Works?
Stud Welding Equipment
The following is equipment required for stud welding:
- Direct current power supply
- A Controller
- Welding Gun
- Cable for tying system components and base metal.
Some stud welding machines combine the power supply and controller into a single unit known as the Welder.
Diagram
Related: How Does Metal Inert Gas (MIG) Welding Works?
Types of Stud Welding
The various types of stud welding include arc stud welding, capacitor discharge stud welding, and automated and robotic stud welding.
Arc Stud Welding
Arc stud welding is a reliable method of fastening for a wide variety of applications. It can quickly weld any size and create strong, one-sided welds on the base metal, even as thin as 0.048 inches.
It uses a DC power supply to create the arc, which produces the joint in just 0.06 seconds.
This process has three common techniques, which include drawn arc stud welding, short arc stud welding, and gas arc stud welding. Materials like mild steel, stainless steel and aluminum are suitable for this process.
Capacitor Discharge Stud Welding
For these types of stud welding, flux is not required, and the welding time is shorter compared to arc stud welding. Also, the process enables the weld to bond with little oxidation and not require heat concentration.
This stud welding also allows for small-diameter studs to be welded to thin or light materials.
Weld studs for capacitor discharge range from 14 gauges to 3/8″ diameters. They are available in many different lengths, ranging from 1/4″ to 5″ and larger.
They typically consist of mild or stainless steel, brass, aluminum, and aluminum alloy. The tip on the weld end of the stud serves a twofold purpose:
- It acts as a timing device to keep the stud off the base material.
- Pulling the gun’s trigger causes it to disintegrate.
Automated and robotic stud welding
There are portable stud welding machines, but the CNC version has automated the work, with controls for arcing and applying pressure. CNC stud welding machines increase the speed and accuracy of manufacturing and construction work.
Stud welding is versatile; typical applications include automobile bodies, electrical panels, shipbuilding, and building construction.
Although shipbuilding is one of the oldest uses of stud welding, the process revolutionized the shipbuilding industry. Other manufacturing industries can also use stud welding for a variety of purposes, from electrical and mechanical to decorative and consumer products
Related: How Does Shielded Metal Arc Welding (SMAW) Works?

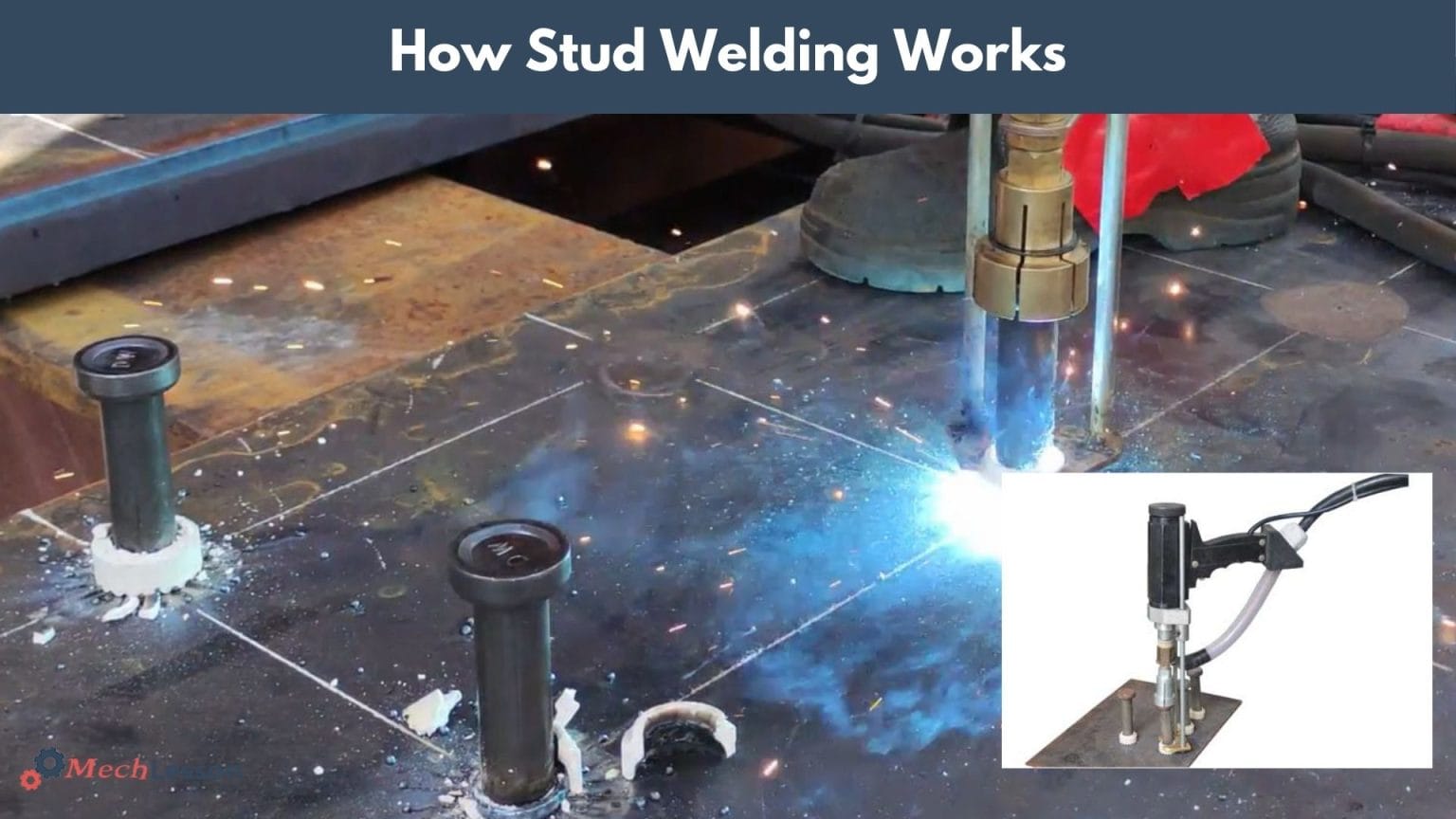

How Does Stud Welding Work?
Arc stud welding involves placing a fastener and ceramic ferrule against the work surface using spring tension in a stud welding gun.
The weld gun then lifts the fastener from the base metal, initiating a controlled electric arc that melts the end of the stud fastener and a small part of the base metal. A ceramic shield is used to concentrate heat and retain the molten material in the weld area.
The fastener is then plunged into the work surface by the stud welding gun, resulting in a high-quality weld. In capacitor discharge stud welding, we place the fastener against the workpiece, which features a special tip for precise weld-time control.
The weld gun uses stored energy to melt the base and a portion of the workpiece, and a spring-loading force holds the fastener in place as the molten metal solidifies, creating a high-quality fusion weld.
Steps Involve In Stud Welding
The steps involved in stud welding include loading the fastener, positioning it to the work surface, and firing.
Welding involves loading a weld stud fastener into a stud welding gun, positioning it in firm contact with the work surface, and activating the gun.
The fastener is welded in a fraction of a second, resulting in a full-strength weld between the fastener and base metal. This process ensures efficient and accurate welding.
Materials Suitable for Stud Welding
Materials for stud welding include steel, aluminum, copper, and brass.
Steel
Steel is a popular material for stud welding due to its strength, ease of use, and affordability. It is suitable for drawn arc stud welding and capacitor discharge stud welding processes.
However, stud welding steel alloy is limited and often not recommended, so it is advised to avoid it as much as possible.
Copper
Copper is a versatile material for welding studs due to its high conductivity and corrosion resistance. It doesn’t heat as much as steel when in contact with a stud welder, making it a cost-effective choice for the food industry.
However, it’s not as corrosion-resistant and has lower surface hardness than steel or stainless steel.
Aluminum
Stud welding is a process where a material is welded to a surface, resulting in increased strength and reduced weight.
This process is particularly effective with aluminum alloys, which are made from elements like copper, zinc, magnesium, titanium, or manganese, providing enhanced strength and corrosion resistance.
Brass
Welding with stud welding is an affordable alternative to steel, offering ductility and corrosion resistance. Brass, a soft metal with a low melting point, is suitable for various applications due to its low melting point.
However, it’s not as strong as other base metals and should not be used for high-strength applications.
Related: What is Fricton Stir Welding? Its Diagram & How it works
Advantages and Disadvantages of Stud Welding
Stud welding is a popular and cost-effective method for joining materials together, producing strong, long-lasting bonds. It requires less expensive equipment and fewer materials, allowing for a quick stud weld cycle.
Industrial applications include attaching metal studs or plates to form structural frameworks for buildings and bridges.
However, welding requires patience and focus, and the right equipment and know-how are essential for successful results. The material being welded and the equipment used for welding are key factors in determining the best stud weld.
The type of metal being welded determines the appropriate machine for the job scope. Stu welding machines are essential for hassle-free welding, making them a worthwhile investment.
